DRUM CUTTER

MB-R500

≥ 3.5 ≤ 11 Ton

≥ 3.5 ≤ 6 Ton

The Jack of all trades, that is master of ALL

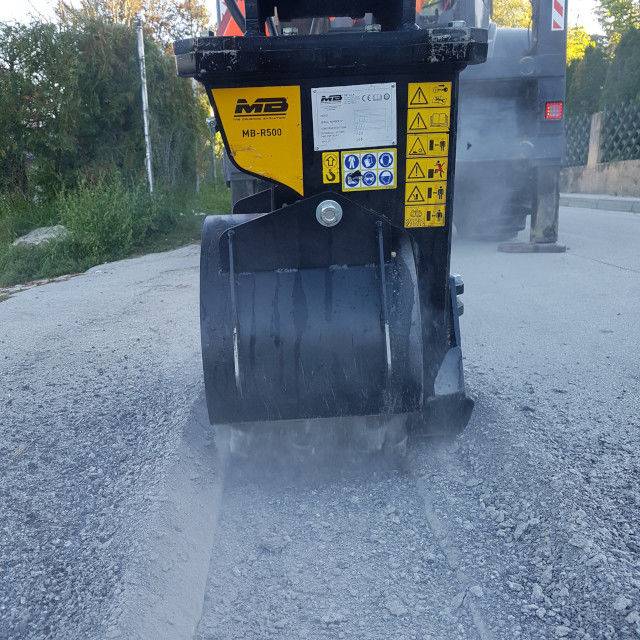

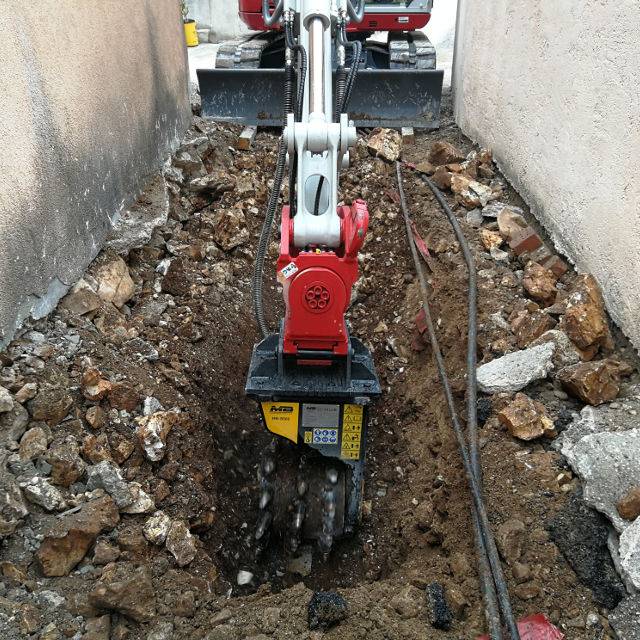

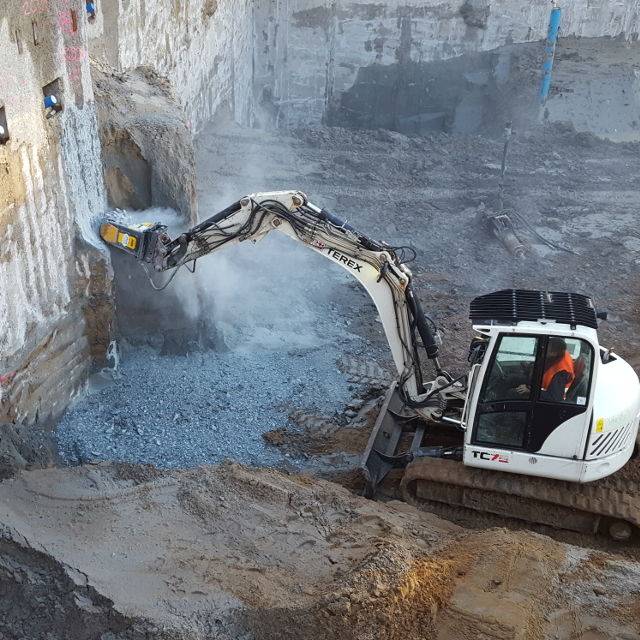

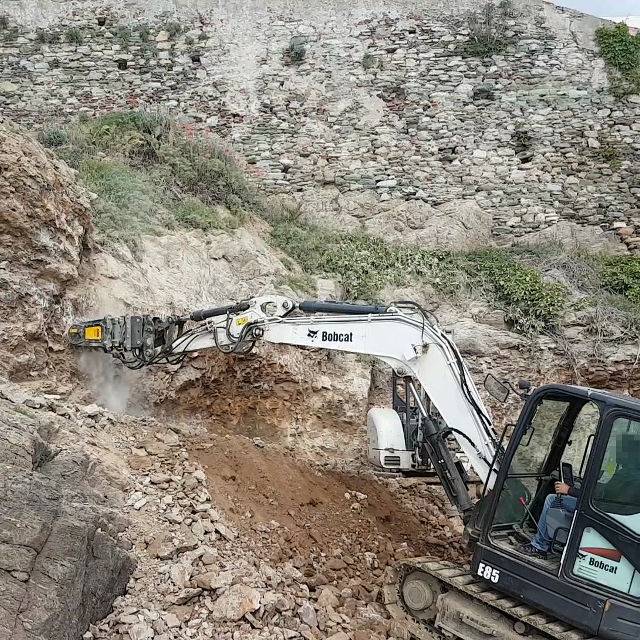

The new MB-R500 is the smallest cutter head of MB Crusher range. It weighs only 300 kg and can be installed on mini and midi excavators from 3,5 to 11 tons, on skid steer loaders and backhoe loaders from 3,5 tons.

Its powerful cutter head has a diameter of 500 mm and grinds with extreme precision. Its drum can be replaced on site in less than an hour, without the need to take the unit to a specialised workshop.

It is easy to use and makes work on different sites easy, especially those that require precision.

TECHNICAL FEATURES

MODEL MB-R500
CUT WIDTH 450 mm
SPEED/min. (MIN/MAX) 80/120 rpm
OUTPUT TORQUE 5000 Nm
PRESSURE > 350 bar
COUNTER PRESSURE < 4 bar
WEIGHT 0,3 Ton
OIL FLOW 60-120 l/min.
DIAMETER DRUM 500 mm

The hydraulic flow and pressure must both meet the required parameters.
