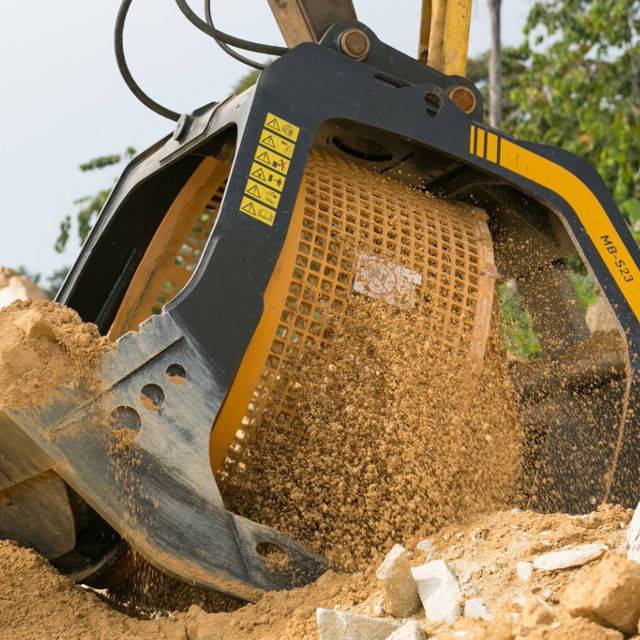

SCREENING BUCKETS

MB-S23

≥ 35 ≤ 50 Ton

The biggest in the world

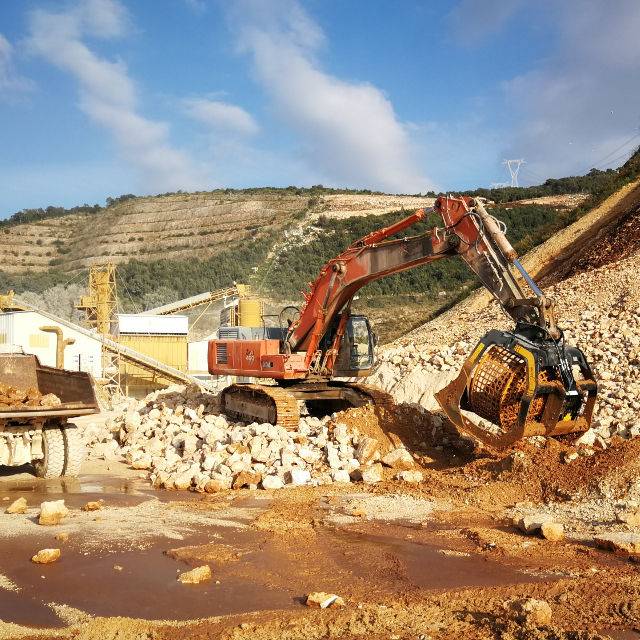

The largest screening bucket in the world, unique in its kind, can be used with excavators greater than 35 Ton.

Ideal for use before or after crushing, the MB-S23 screening bucket will reduce crushing time up to 60%. It also allows the screening of natural material (quarry residues, dry soil, and river stone) of any kind, making it convenient for on-site processing.

A must in reducing volumes and optimizing the size of materials for specific uses.

TECHNICAL FEATURES

MODEL MB-S23
WEIGHT 3,66 Ton
LOAD CAPACITY 3,75 m³
PRESSURE > 320 bar
COUNTER PRESSURE < 5 bar
OIL FLOW 160 L/min

The hydraulic flow and pressure must both meet the required parameters.
