SORTING GRAPPLES

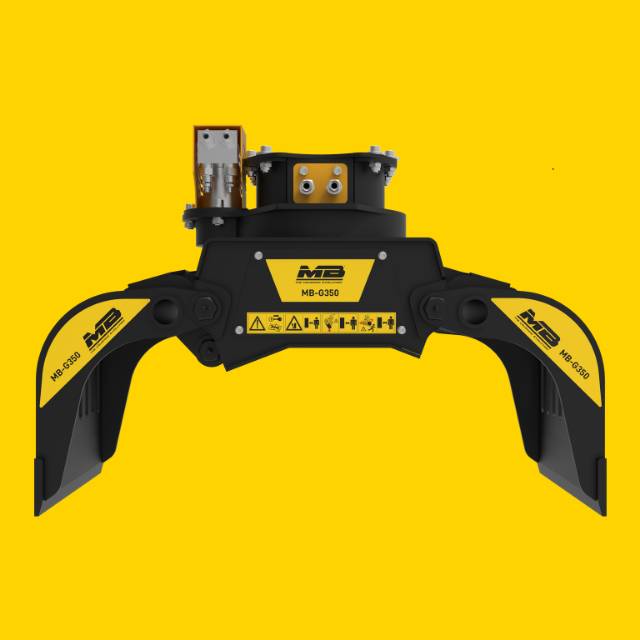

MB-G350 S4

≥ 1.3 ≤ 2.6 Ton

Compatta e precisa

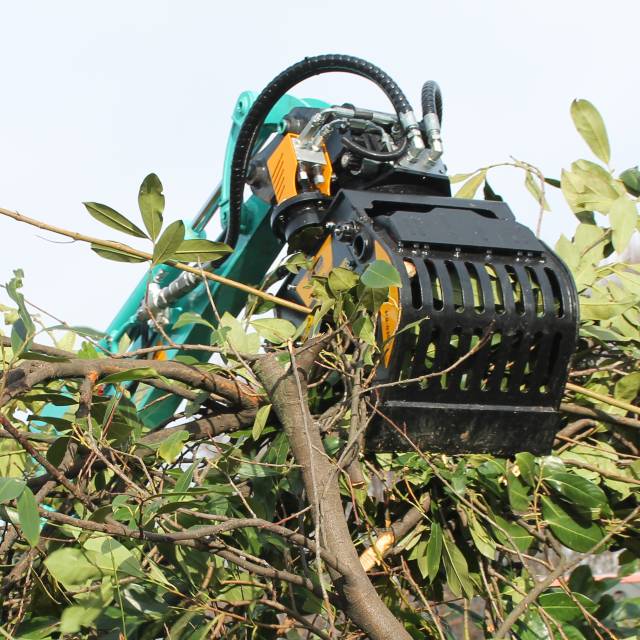

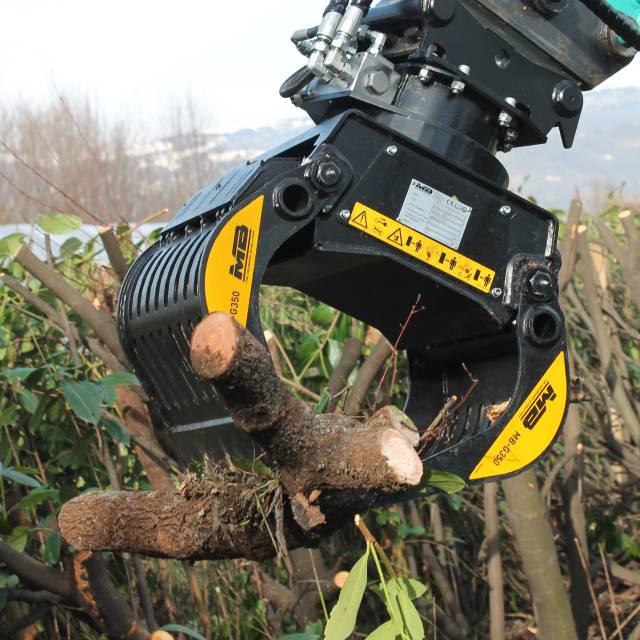

Compact, versatile, and precise, the MB-G350 sorting grapple works on mini-excavators to handle logs, rocks, debris, poles, to position stones for dry stone walls, separate branches from dirt, etc.

The unit's jaws have a wide opening, so it can grab and handle large materials.

It's equipped with a fall prevention valve, guaranteeing a safe job site. The unit can have an electrical kit installed for two-line functionality, allowing it to use the 360° rotation - even for mini-excavators which come with two hoses.

TECHNICAL FEATURES

MODEL MB-G350
WEIGHT 85 KG
LOAD CAPACITY 0,03 m³ / 30 Lt
ROTATION 360°
FLOW DIRECTION 5 l/min.
PRESSURE OF ROTATION 150 bar
PRESSURE (OPEN/CLOSE) 200 bar
OIL FLOW (OPEN/CLOSE) 15 L/min

The hydraulic flow and pressure must both meet the required parameters.
