SORTING GRAPPLES

MB-G450 S4

≥ 3 ≤ 6 Ton

Agile and versatile

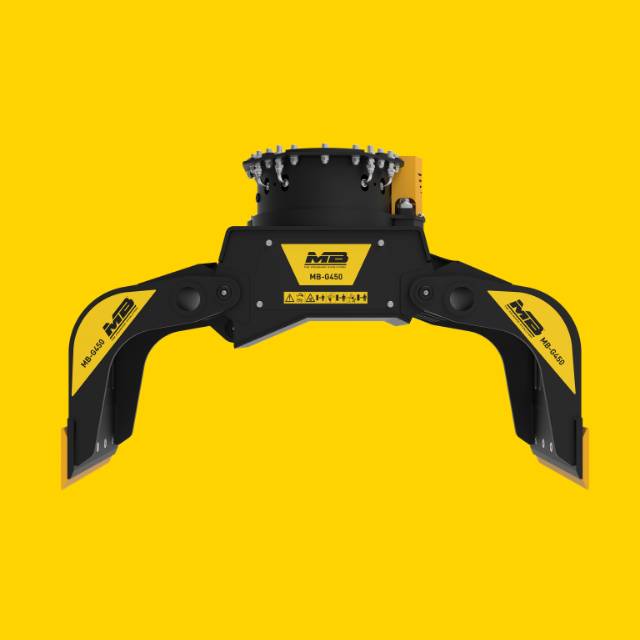

The MB-G450 sorting grapple works on midi-excavators from 3 to 6 tons and can move and handle materials of different shapes and sizes. The unit's design allows it to have an electrical kit installed for two line fuctionality, allowing it to use 360° rotation, even with midi-excavators that only have two hoses.

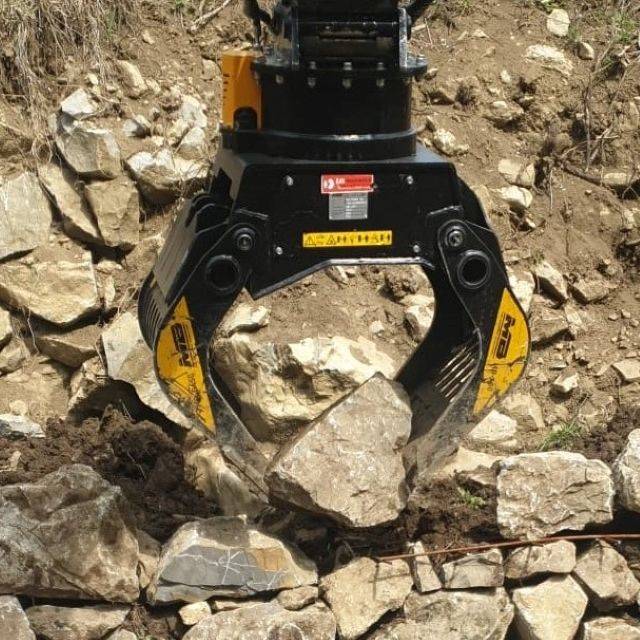

The unit's claws have a wide opening, making it able to handle large materials. It's equipped interchangeable blades, which can be flipped around to extend its life and an anti-fall valve.

TECHNICAL FEATURES

MODEL MB-G450
WEIGHT 288 KG
LOAD CAPACITY 0,10 m³ / 100 Lt
ROTATION 360°
FLOW DIRECTION 10 l/min.
PRESSURE OF ROTATION 150 bar
PRESSURE (OPEN/CLOSE) 250 bar
OIL FLOW (OPEN/CLOSE) 40 L/min

The hydraulic flow and pressure must both meet the required parameters.
