SORTING GRAPPLES

MB-G900 S4

≥ 12 ≤ 18 Ton

Handy with high performance

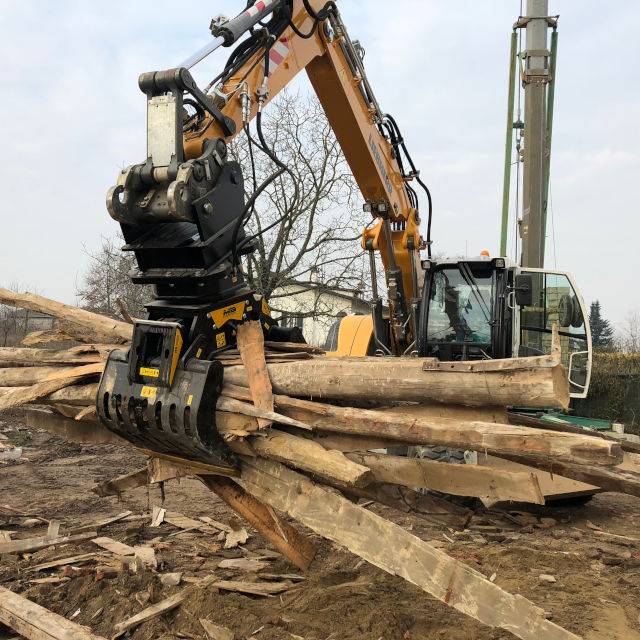

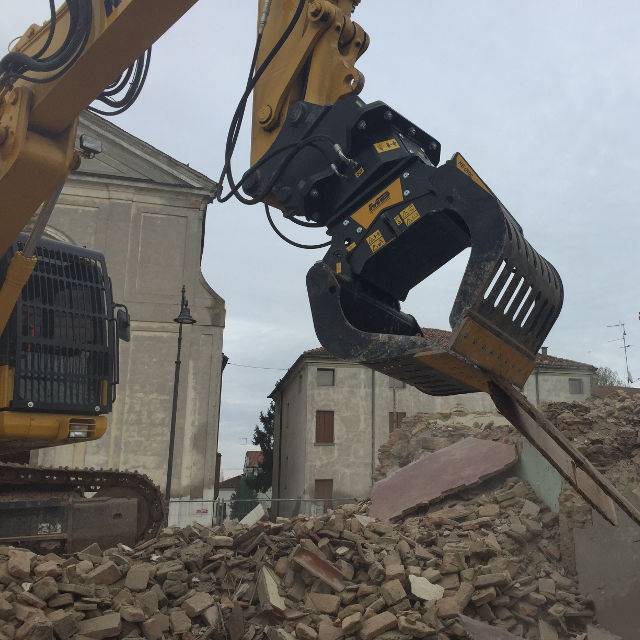

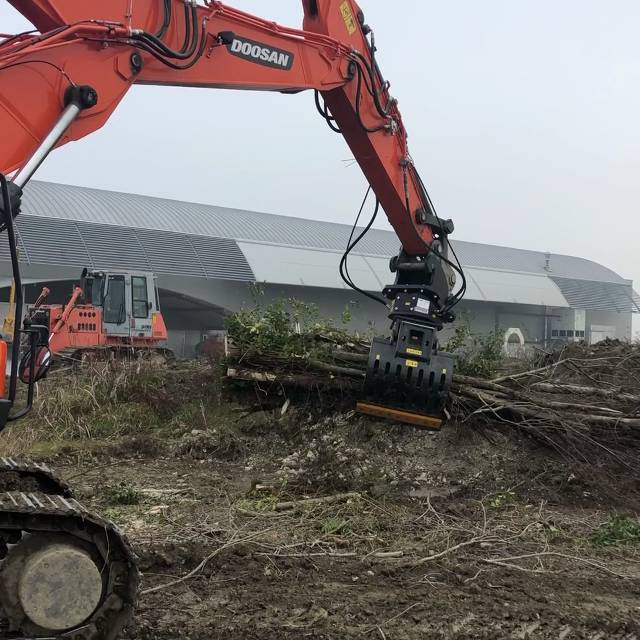

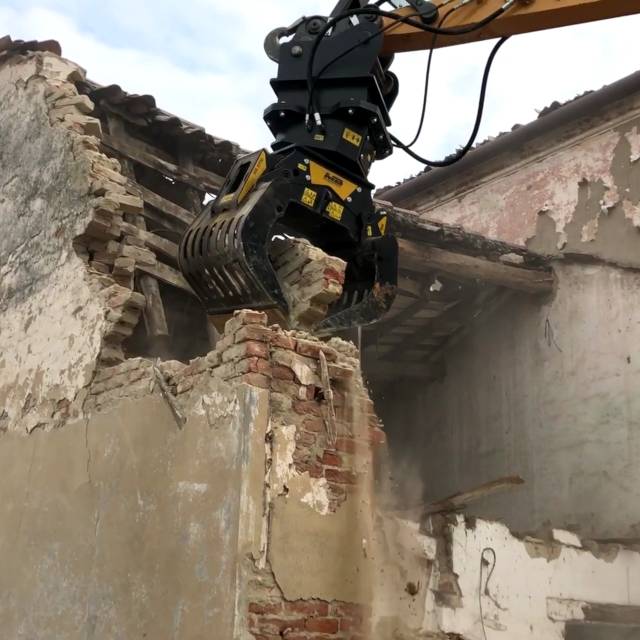

Designed for Xing and handling demolition materials and conceived according to the highest technological standards for any types of materials in a reliable way, with constance and total safety.

Thanks to the interchangeable claws and the 360° hydraulic rotation it allows you to handle large loads and odd forms.

TECHNICAL FEATURES

MODEL MB-G900
WEIGHT 0,78 Ton
LOAD CAPACITY (CLAWS CLOSED) 0,43 m³ / 430 L
ROTATION 360°
FLOW DIRECTION 15 - 30 l/min.
PRESSURE OF ROTATION > 160 bar
PRESSURE (OPEN/CLOSE) 200 - 300 bar
OIL FLOW (OPEN/CLOSE) 30 l/min.

The hydraulic flow and pressure must both meet the required parameters.
