Paver Laying Machine S19

Paver Laying Machine S19

Our PaveJet S19 paving machine scores with its optimized further development based on the knowledge gained over the last 4 decades. We know the demands on small and large construction sites and are in constant contact with our customers and can therefore build the perfect machine for today's requirements. Our PaveJet S19 has been given a completely new look by a renowned industrial designer.

The majority of our pavement laying machines are manufactured order-related, so that the respective customer requirements such as clamp options and extras like e.g. cabin, heating, 4-wheel-drive or even an individual painting can be integrated into the production process.

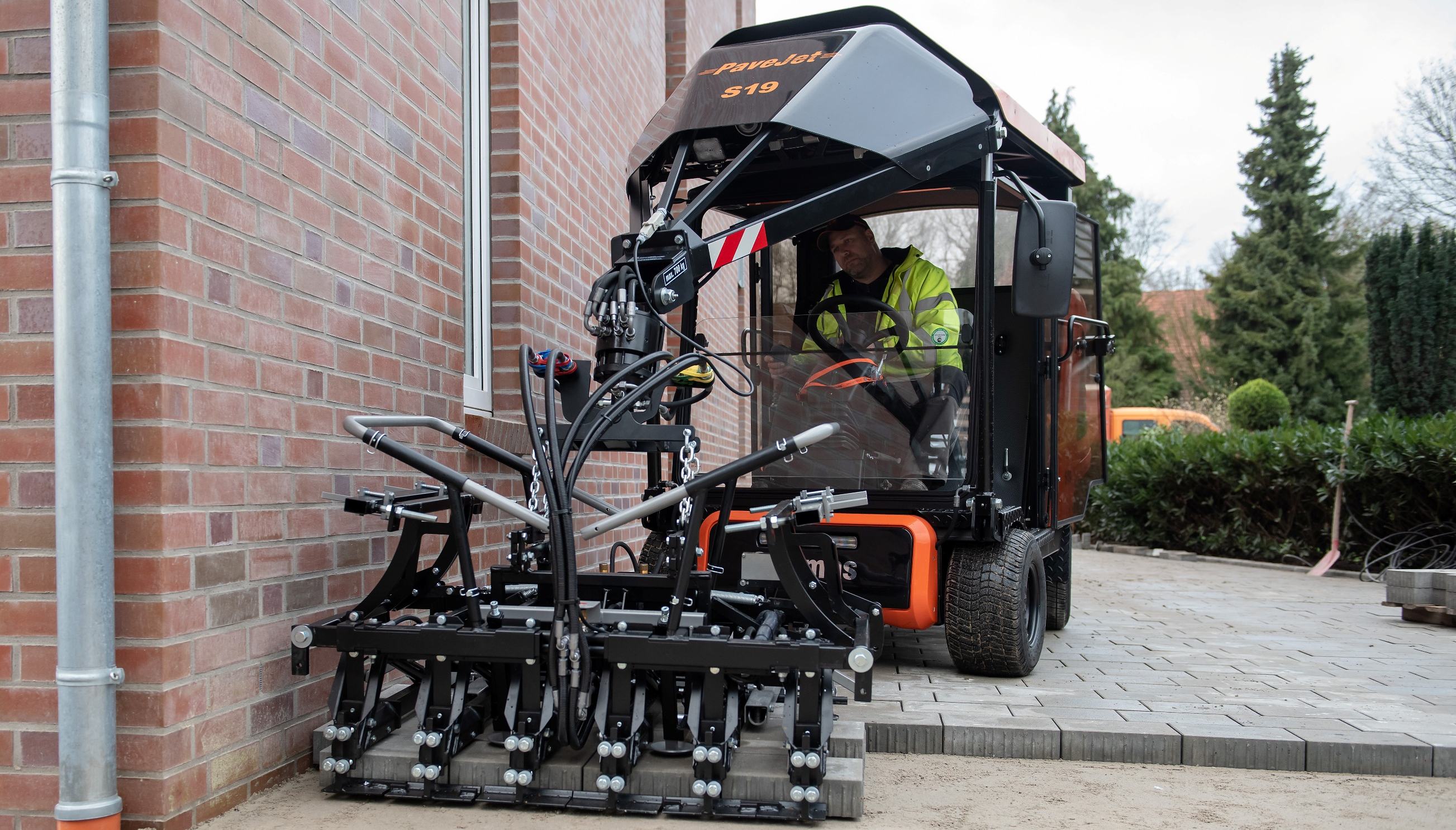

The S19 PaveJet installs pavers and slabs extremely fast and precise with a perfect joint pattern.

No matter whether on small or large construction sites, the perfect combination of the 2-axle turntable steering and the endless grab turning gear means that the machine is always optimally usable. Whether laying in underground car parks or picking up stone layers from pallets on top of each other with a height of 2.60 m - there is no limit.

You can confidently put the issue of staff shortage away. The PaveJet S19 is a reliable employee who quickly becomes popular and pays off.

Many arguments speak for the PaveJet S19:

• the simple operation and the open design
• revised hydraulics and improved driving characteristics - now even more sensitive, better dosage and easier to drive
• all steel parts powder-coated in RAL 2004 (very resistant and durable).
• Roof, front panel, side panels and bonnet made of glass fibre reinforced plastic in colour RAL 2004 (high strength, UV-resistant, weatherproof and rustproof)
• user-friendly, a high-quality work result can be effortlessly achieved also after an 8-hour working day.
• agile due to the proven geometry
• stable and mobile even with a high shift of the centre of gravity
• short-term amortisation of the investment - long operating life of the S19 PaveJet
• enormous effectiveness for contractors - very motivating for the worker.
• The S19 PaveJet is fast... with optimum site organisation, it installs the pavers in 20-second cycles.
• Installation of more than 1000 m² (10.000 ft²) per day possible

Basic equipment:

• Hydraulic Tap Down device on Paver-Clamp for a perfect joint pattern
• Joystick
• Semi-automatic
• Steering column, adjustable
• Foot pedals adjustable
• Seat adjustable
• 4-cylinder diesel engine Kohler LDW1404
• Hydrostatic drive - adjustable with throttle valves
• 2-axle turntable steering
• Storage space/board tool kit
• Painting: All steel parts powder coated RAL 2004. Roof, front panel, side parts and bonnet made of glass fibre reinforced plastic in colour RAL 2004 (pure orange)
• Bottle holder
• 12 Volt connection + USB charging socket
• Central lubrication
• Hour counter, cycle counter
• Revolution counter
• Wide tires

We offer the following packages:

"Standard"

• Continuous clamp rotation gear
• DLED headlight package (1 front light, 2 working lights and 1 reversing light) incl. daytime running light
• LED warning beacon
• Mobile phone holder

"Exclusive"

• Cabin: Front windscreen can be opened. Safety glass all round, interior lighting, doormat.
• Heating with 2-step blower
• Continuous clamp rotation gear
• Automatic: all clamp functions are performed automatically
• Two-stage boom – work in the underground car park and clamping of 2 packages.
• LED headlight package (1 front light, 2 working lights and 1 reversing light) incl. daytime running light
• LED warning beacon
• Radio incl. loudspeaker and antenna
• Mobile phone holder

In addition we offer optional:

• Comfort seat with air suspension and heating.
• Radio with Bluetooth hands-free unit.
• Heatable outside mirror
• Rear view camera incl. 7" monitor
• All-wheel drive 4x4 incl. anti-slip, switchable
• Joystick steering (Integrated in the left armrest, easy and intuitive to operate)
• Particulate filter (complies with TRGS554)
• Special painting (Painting in all RAL colours possible. On request, we will be pleased to supply in your company colour)
• Joystick - Steering
  1. In addition to the steering wheel. Integrated in the left armrest.
  2. Easy and intuitive to use. Steering wheel removable.
• Joystick for "lifting / lowering" function
  1. In addition to the foot pedal. Integrated in the right armrest.
  2. The " lifting/lowering" function can be controlled by both the foot pedal as well as the joystick.

The Paver-Clamp Multi6 M is part of the standard equipment. It can be infinitely adjusted to all stone formats, stone layers and stone thicknesses.

Is optionally also available with electric adjustment. All 6 gripper arms are automatically adjusted to the optimum gripping dimension. Find detailed information to our Paver-Clamp Multi6 ME

Height:	1.970 mm
Length:	3.900 mm
Width:	1350 mm
Weight:	21.300 kg (2,866 lbs)
Lifting capacity:	700 kg (1.540 lbs)
Engine:	Diesel engine, 4-cylinder, water-cooled with electric ventilation, 17.9 kW (24.3 hp), soundproofed. Meets EU Stage V and TIER IV final (USA) exhaust emission regulations, no restriction in low emission zones as engine power < 19 kW.
Other:	Oil cooler; hydrostatic drive with single-pedal control, 2-axle turntable steering, rear axle with independent pendulum suspension, hydrostatic parking brake , Tank 45 l Diesel, Steel parts powder-coated, roof, front panel, side panels and bonnet made of GFK-parts RAL 2004 (pure orange) CE - marked
Scope of application:	Paving
Type of product:	Machine
