Maxi - Screed
Art-No. 47032
Presented in 1985
Minimizing manual labour, the Optimas grader is the ideal tool to prepare a paver surface.
Maxi - Screed
The stable and well-designed construction permits easy laying of the various substrates (sand, ballast, shingle) and precise levelling of the fine screed (sand, chips or similar substrates) up to a width of 7 metres.
With its simple operation, high efficiency and comparatively low cost, the Optimas Maxi Screed belongs on every building site. Its bucket shape and pulling points have been designed to enable a light-weight design which does not lift up when drawn. The continuously-adjustable modular design of the screed set makes it the innovative alternative to the telescope principle, which has never convinced in practice.
Advantages:
- The modular design provides a continuously-adjustable working width of 0.25 to 7.50 m

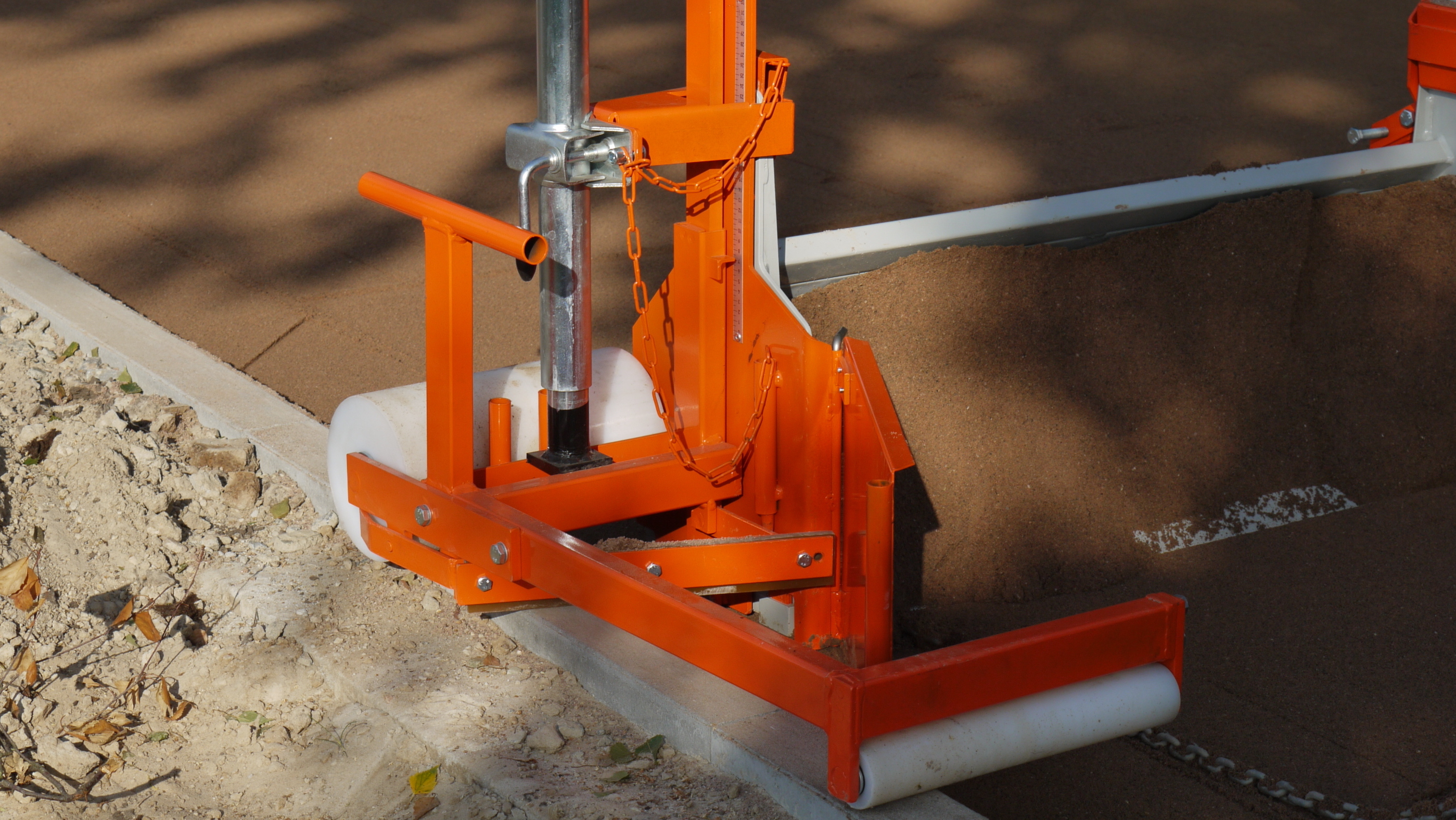

- Continuous height adjustment with scaling on both sides
- Articulated side flaps make for clean levelling up to the edge
- Levelling via Optimas level bars (with plug system) or the kerb or gutter stones
- “Bucket design” makes for a large holding capacity
- Its bucket shape and pulling points have been designed to enable a light-weight design which does not lift up when drawn.
- Quick and easy change and fitting of various intermediate parts.
- Hardened and sharpened spring steel blade
- Modular design saves space during transport and storage
- Setting cambers (roof profile) up to 9 %
- Flexible use on a range of small and large construction sites for coarse and fine screeding
| Intermediate pieces are available in the following widths: | 4m (13,12 ft), 2,8m (9,19 ft), 2,2m (7,22 ft), 1,50m (4,92 ft), 0,75m (2,46 ft), 0,35m (1,15 ft) |
| Adapter / Connector: | Necessary to adjust the roof profile and to connect intermediate pieces. |
| Wheels: | 1 pair with easy-running plastic wheels, variable side flaps (300 mm on each side), pull chains and infinitely variable height adjustment with scale |
| Screed rails: | Galvanized incl. plug connector, available in 4 m (13,12 ft), 3 m (9,84 ft), 2 m (6,56 ft) and 1 m (3,28 ft) lengths |
| Transport hooks: | 1 pair for safe transport with wheel loader |
| Working width: | up to 7,5 m (24,60 ft) |
| Scope of application: | Surface levelling |
| Type of product: | Attachments |
