Art-No.   54368B

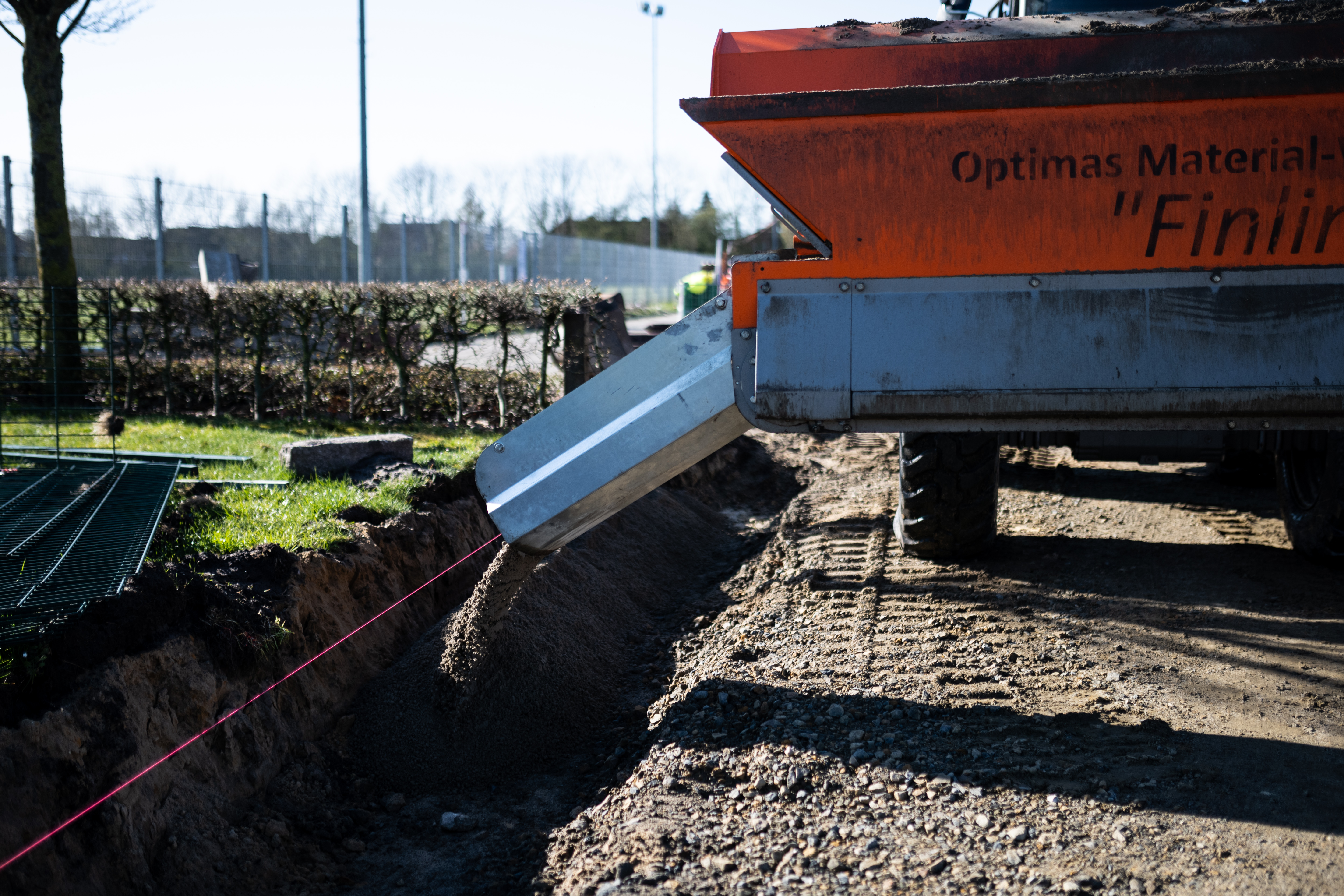

The side-shoot bucket is a multi-talented hidden champion for distribution of concrete for bedding and haunching of kerbs, for backfilling of ditches and canals in line-construction and filling of e.g. container, sacks etc., and last but not least for road shoulder maintenance.

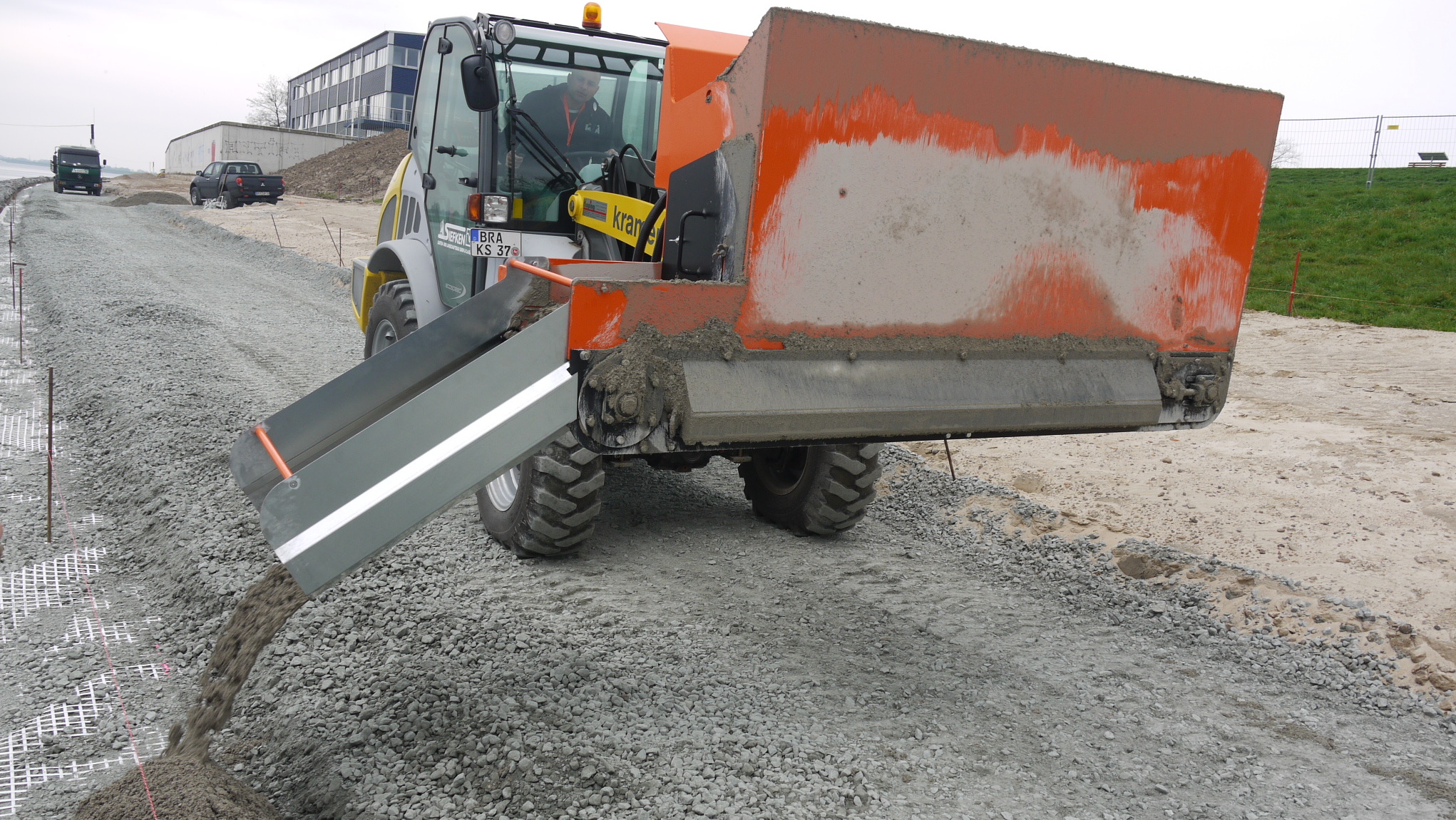

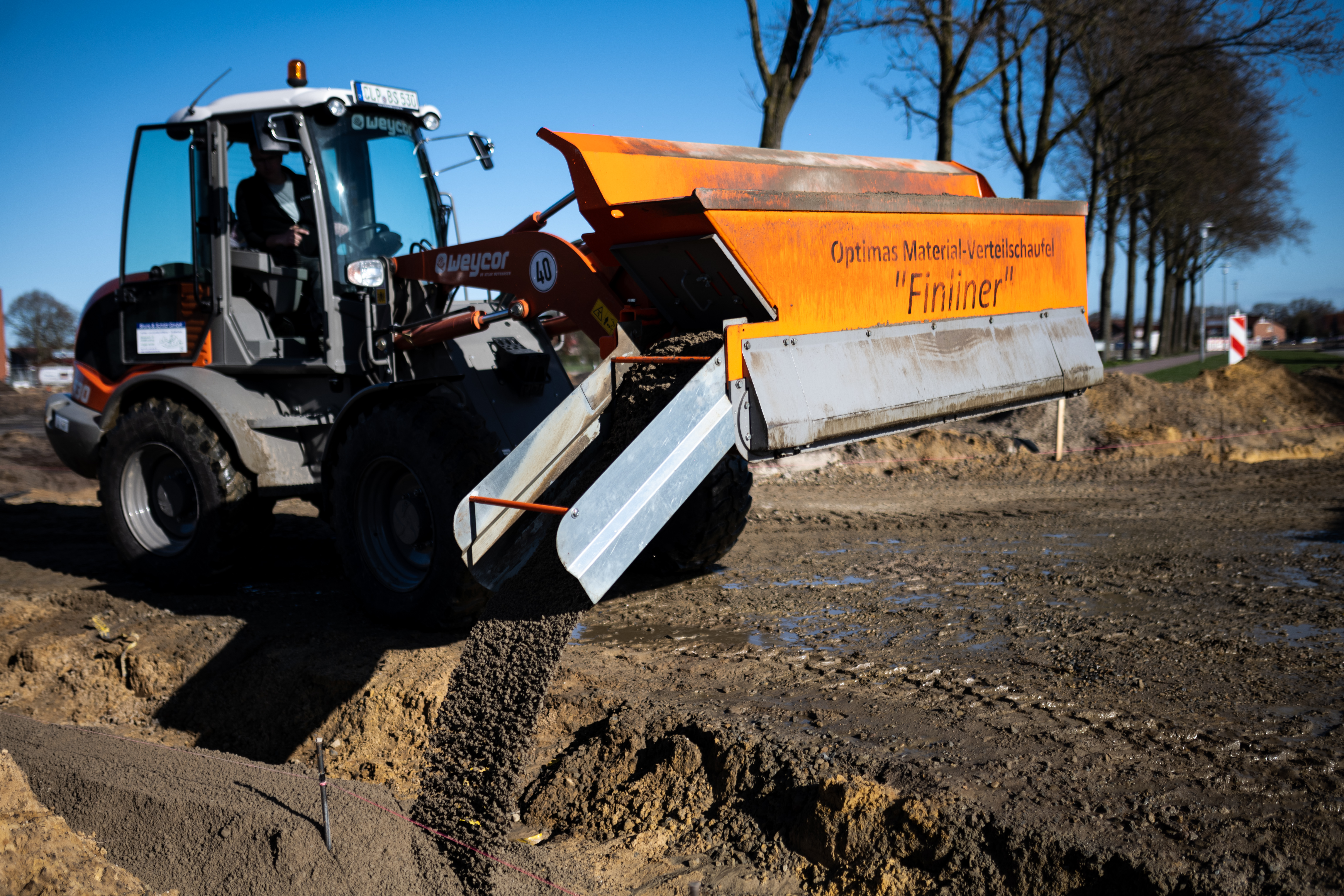

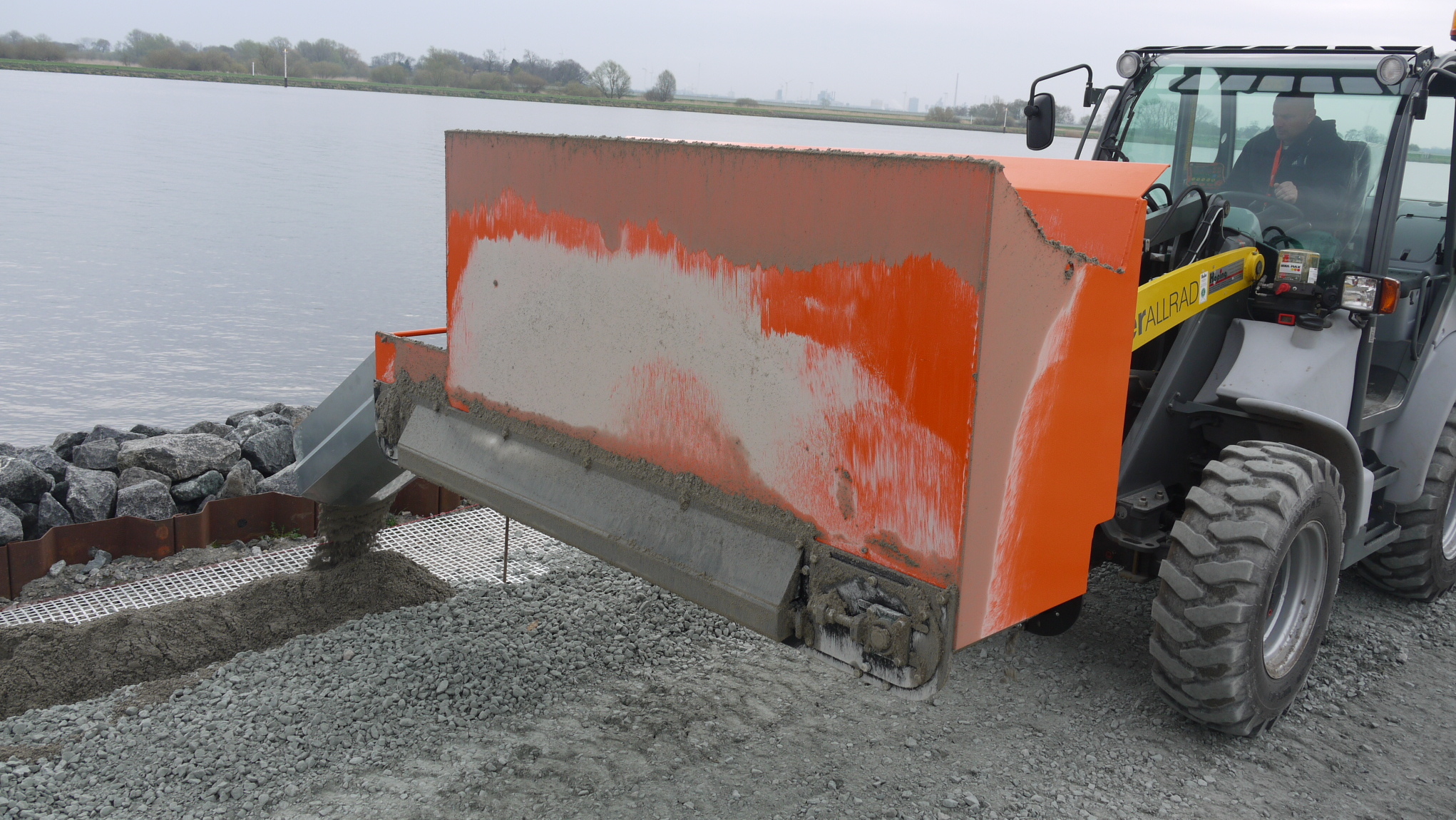

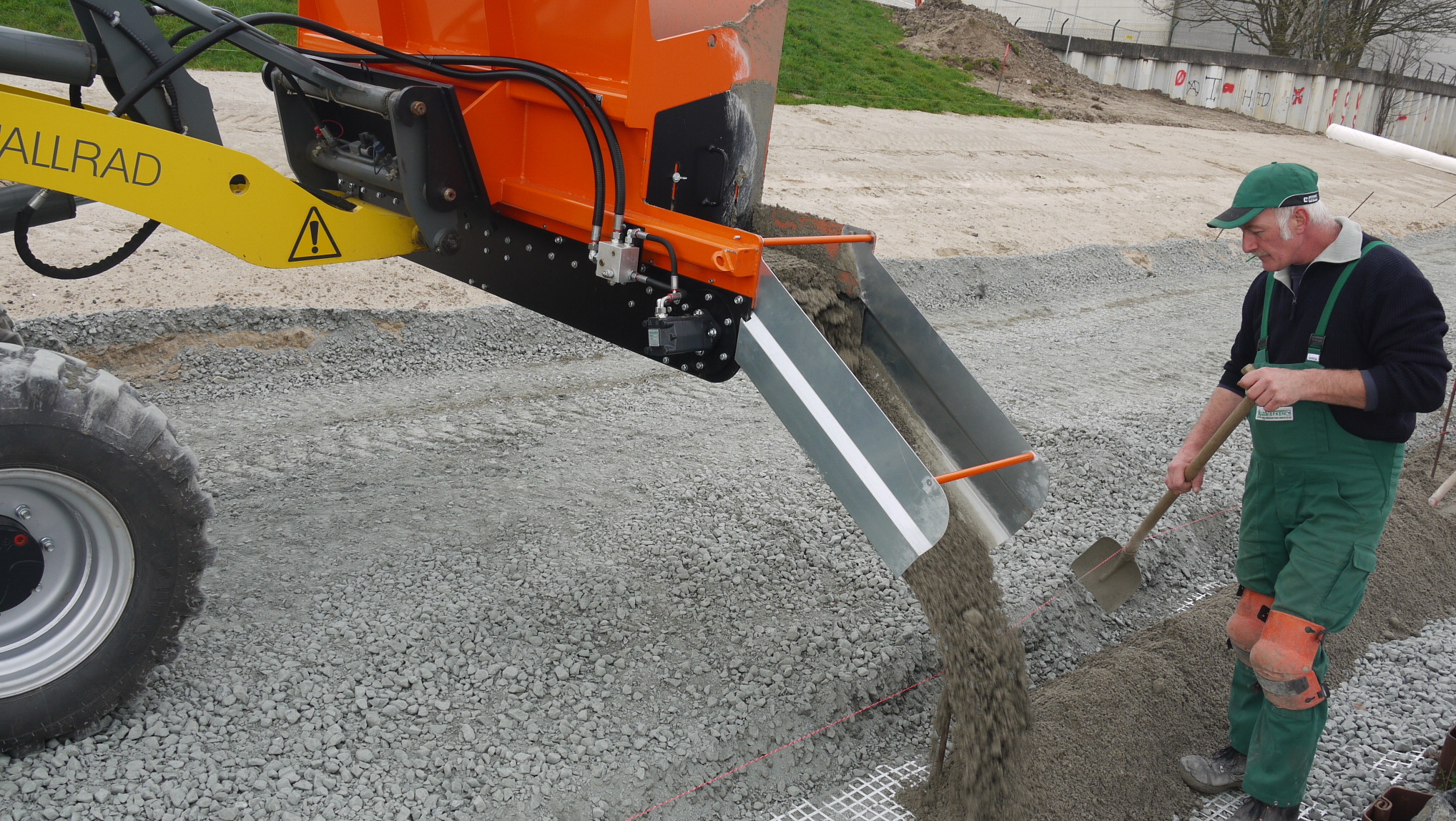

With the "Finliner" it is very easy to distribute material via a conveyor perfectly dosed. The bucket is emptied laterally via a conveyor belt, the amount of material is precisely metered by the speed of the conveyor belt and the loader. The material drops directly in front of the screed blade and will be installed on the proper height. The screed blade is adjustable in height and inclination.

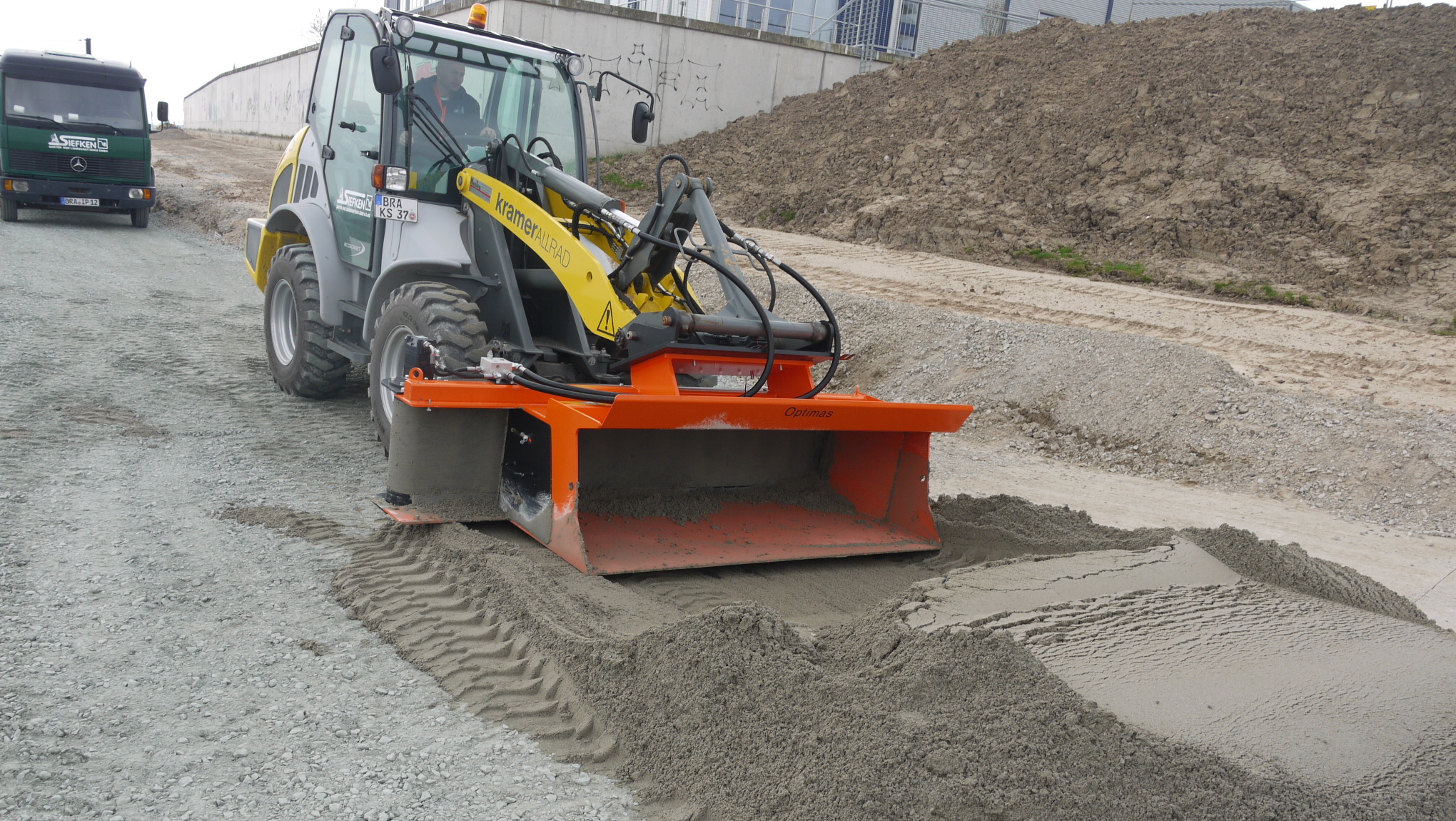

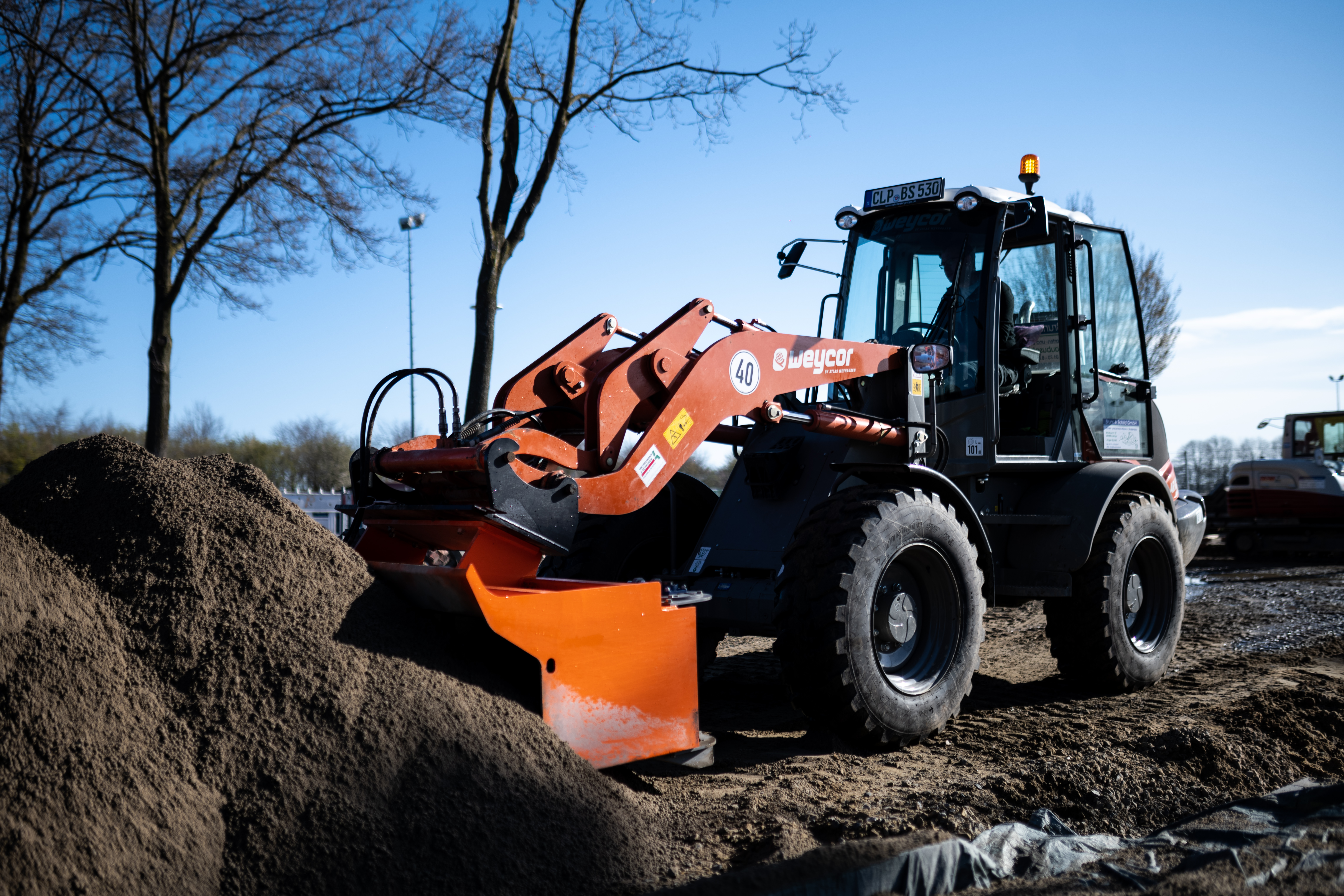

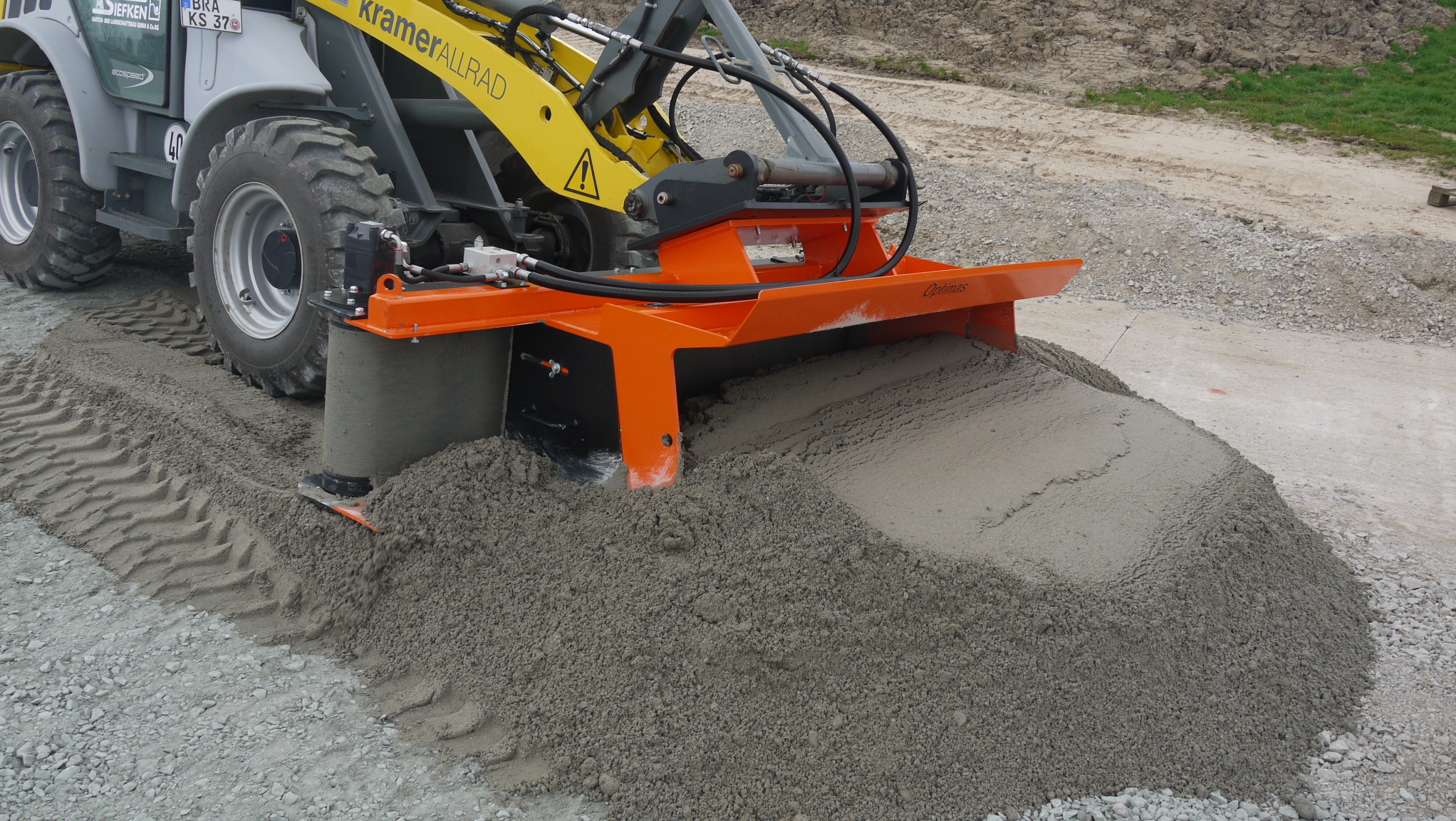

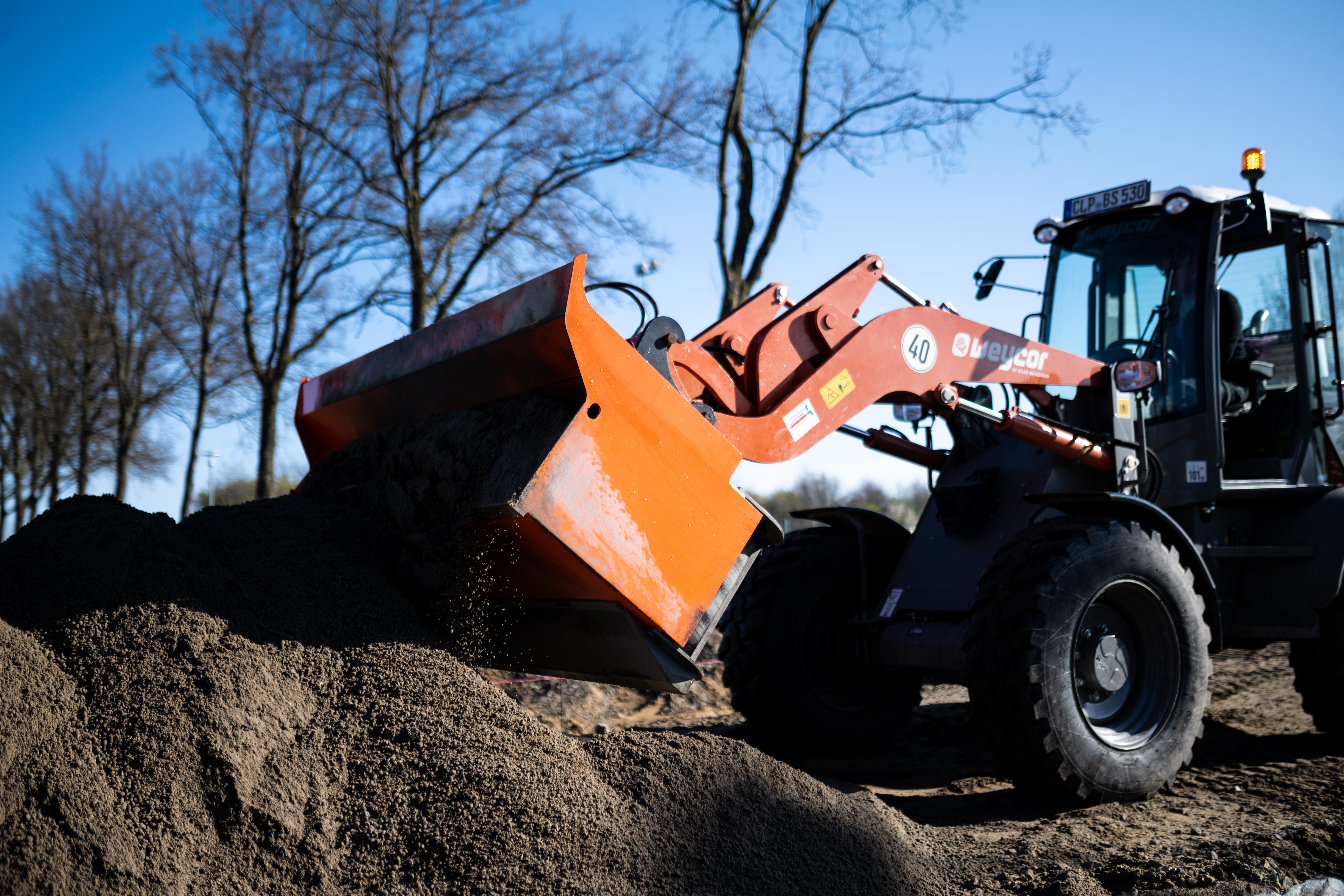

This side-shoot bucket is filled either like a conventional bucket (only applies to the 0.5 m³/1.0 m³ version) or directly from the truck or by a second wheel loader.
The bucket is an attachment for wheel loaders (1.4 m³ bucket also for Unimog) and is mounted by using the matching quick-change coupling.
The self-loading 0,5 m³/1.0 m³ Side-shoot bucket is not only used for road shoulder maintenance, but is also very efficient for material-distribution work for foundations for kerbs/gutter stones, for backfilling of ditches and canals in line-construction and filling of e.g. container, sacks etc., etc. a hidden champion, mulit-talented.
The 1.4 m³ Side-shoot bucket is mainly used for road shoulder maintenance. The economical alternative to the traditionally used huge machinery.
Existing clients from different fields use it for:
Also available with left ejection for mounting on telescopic loaders.
Capacity: | Finliner 0.5 m³: filled to the edge 0,5 m³ - heaped 0,6 m³ / Finliner 1.0 m³: filled to the edge 0,8 m³ - heaped 1,0 m³ / Finliner 1.4 m³: fill to the edge 1,1 m³ - heaped 1,4 m³ |
Filling width: | Finliner 0,5 m³: 1,83 m (6,0 ft) / Finliner 1,0 m³+1,4 m³: 2,6 m (8,5 ft) |

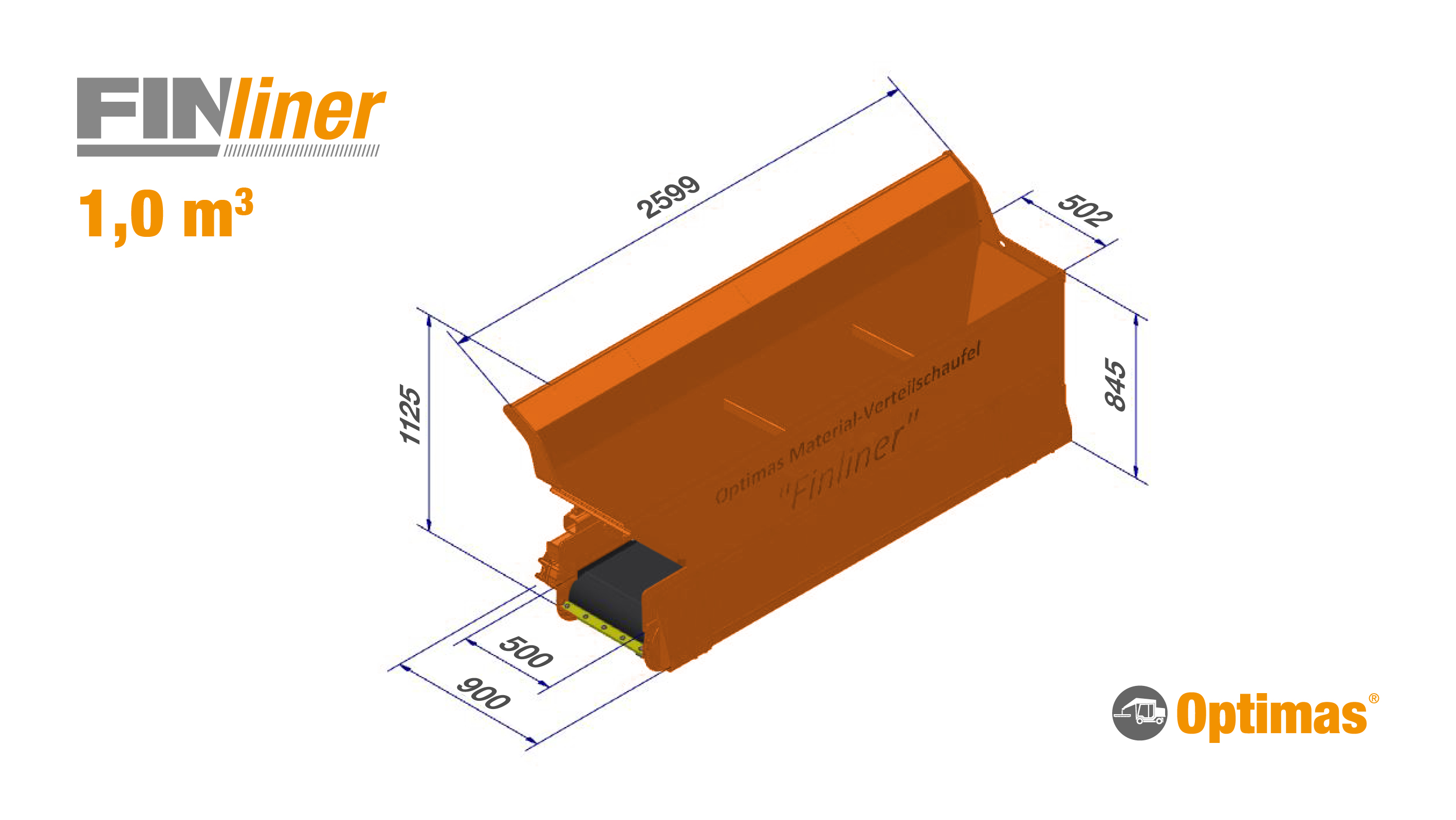

Transport dimensions: | Finliner 0.5 m³: L 1830 x W 1080 x H 1125 mm / Finliner 1.0 m³: L 2599 x W 900 x H 1125 mm / Finliner 1.4 m³: L 2599 x W 1350 x H 1197 mm |
Length: | Conveyor belt: 2,50 m (8,2 ft) |
Weight: | Finliner 0.5 m³ = 650 kg (1,433 lbs) / Finliner 1.0 m³ = 830 kg (1,830 lbs) / Finliner 1.4 m³ = 1.100 kg (2,425 lbs) |
Scope of application: | Road shoulder maintenance, Concrete spreading, Line construction / Filling ditches, Material distribution, Edging/Haunching |
Type of product: | Attachments |
