Paver Joint Filling device for Optimas machines
Art-No. 47149
Introduced in 1998 as a "world first".
The Optimas paver joint filling device for the paver laying machine is perfectly-suited for inserting jointing material in paver joints on both small and large paver surfaces. Only a completely filled joint transfers force from stone to stone, preventing stone movement and maintains the elasticity of the paver surface.
Paver Joint Filling device for Optimas machines
The paver filling device is fixed to the paver laying machine with socket pins without the need for tools. The extremely high manoeuvrability of the paver laying machine means that the jointing material can also be inserted in the curves and edges of paver joints.
The jointing material can be inserted dry and with water. As the best results (depending on the material to be filled) are often obtained by sluicing the material in with water, Optimas provides a water container (1.000 L).

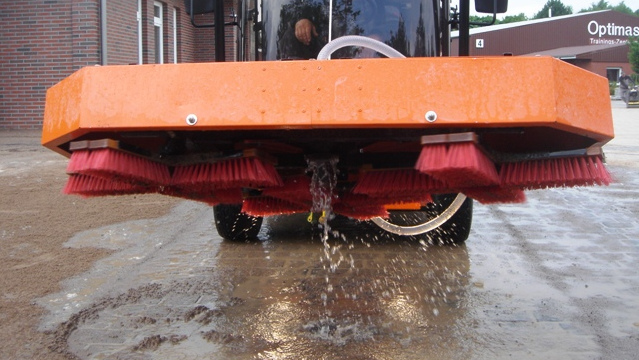

The three overlapping and rotating brushes massage the jointing material into the paver joints, filling them completely. Depending on the joint width and depth, a person can complete up to 300 m²/hour.
Giving your paver surface a long service life.
Cleaning the paver surface with the sweeping machine carries off not only loose sand, but parts of the jointing material between the pavestones.
The Optimas paver filling machine is suitable for subsequently filling the joints with sand and stone chips.
Advantages:
- Higher placement speeds
- Considerable time saving
- Low manpower requirements (1 person)
- Low repair work
- Increases quality of outcome
- Easy to operate
- Low transport requirements
- Quick assembly and disassembly (2 min.)
| Drive: | hydraulic |
| Option: | Can be combined with water container 1.000 ltr. (264 gal US/ 220 gal UK) |
| Weight: | 110 kg (242,5 lbs) |
| Output per hour: | approx. 200 - 300 m² (2.100 - 3.300 ft²) |
| Working width: | 1,70 m (5,58 ft) |
| Paver Joints-Filler: | 24 broom inserts on 3 broom crosses |
| Scope of application: | Joint filling, Fill paving joints |
| Type of product: | Attachments |
