Paver Laying Machine PaveJet S19 E

Paver Laying Machine PaveJet S19 E

On the BAUMA 2019 we introduced the world's most modern Paver Laying machine PaveJet S19 also with pure electric drive - Optimas PaveJet S19E.

Our engineers and consulting experts chose a system with a quick-change battery. This drive system ensures continuous operation with full load. Depending on driving style, engine power called up, outside temperatures etc. the battery life is approx. 3-4 hours.

The user now has two options for charging the battery. One is with the internal 3kW charger (approx. 5 hours charging time) or with the external 9 kW charger (approx. 1.5 hours charging time).

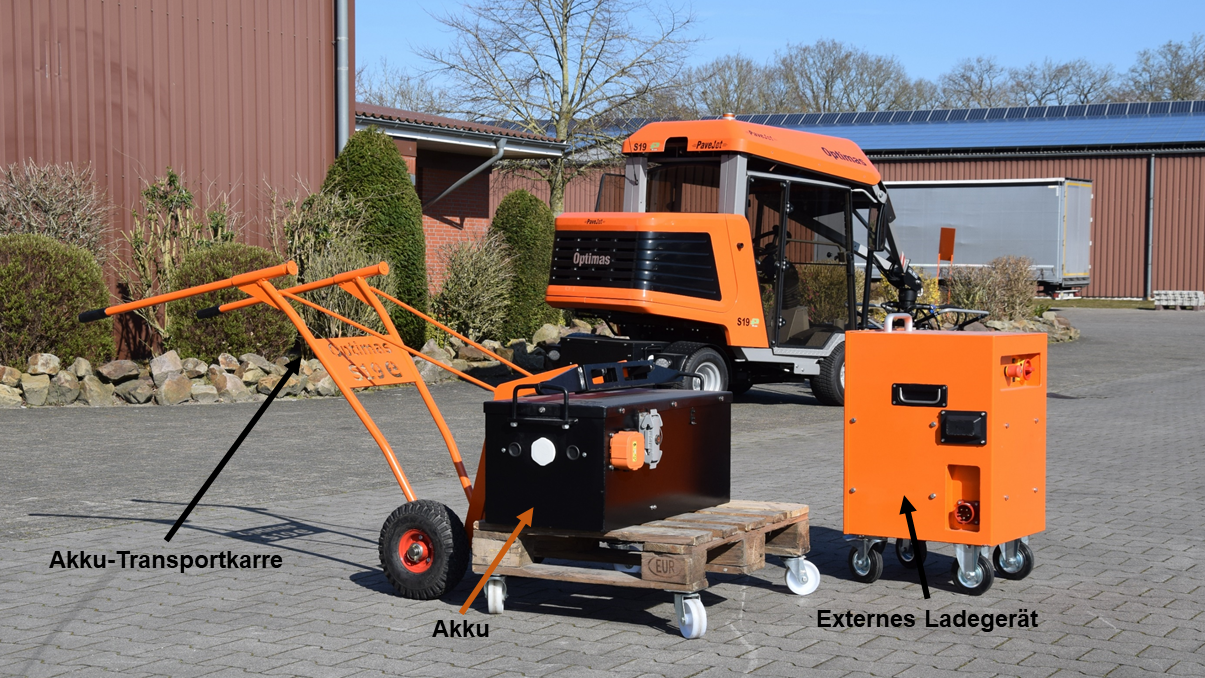

If these charging times are too long for the job site procedure, we recommend a second battery. Here the advantage of the exchangeable quick-change battery system comes into play. If a battery is empty, the empty battery is replaced by a full battery within a few minutes. Because of the short charging times with the external charger, continuous work is guaranteed.

Basic equipment:

• Hydraulic Tap Down device on Paver-Clamp for a perfect joint pattern
• Joystick
• Semi-automatic
• Steering column, adjustable
• Foot pedals adjustable
• Seat adjustable
• 4-cylinder diesel engine Kohler LDW1404
• Hydrostatic drive - adjustable with throttle valves
• 2-axle turntable steering
• Storage space/board tool kit
• Painting: All steel parts powder coated RAL 2004. Roof, front panel, side parts and bonnet made of glass fibre reinforced plastic in colour RAL 2004 (pure orange)
• Bottle holder
• 12 Volt connection + USB charging socket
• Central lubrication
• Hour counter, cycle counter
• Revolution counter
• Wide tires

You are welcome to configure your machine according to your personal wishes.

Or take the opportunity and choose an equipment package with a price advantage.

Our equipment packages include extensive extras with an attractive price advantage.

Use these discounted extras for a more comfortable working place.

We offer the following packages:

"Standard"

• Continuous clamp rotation gear
• LED headlight package (1 front light, 2 working lights and 1 reversing light) incl. daytime running light
• LED warning beacon
• Mobile phone holder

"Exclusive"

• Cabin: Front windscreen can be opened. Safety glass all round, interior lighting, doormat.
• Heating with 2-step blower
• Continuous clamp rotation gear
• Automatic: all clamp functions are performed automatically
• Two-stage boom – work in the underground car park and clamping of 2 packages.
• LED headlight package (1 front light, 2 working lights and 1 reversing light) incl. daytime running light
• LED warning beacon
• Radio incl. loudspeaker and antenna
• Mobile phone holder

In addition we offer optional:

• Comfort seat with air suspension and heating.
• Radio with Bluetooth hands-free unit.
• Heatable outside mirror
• Rear view camera incl. 7" monitor
• All-wheel drive 4x4 incl. anti-slip, switchable
• Joystick steering (Integrated in the left armrest, easy and intuitive to operate)
• Particulate filter (complies with TRGS554)
• Special painting (Painting in all RAL colours possible. On request, we will be pleased to supply in your company colour)
• Joystick - Steering
  1. In addition to the steering wheel. Integrated in the left armrest.
  2. Easy and intuitive to use. Steering wheel removable.
• Joystick for "lifting / lowering" function
  1. In addition to the foot pedal. Integrated in the right armrest.
  2. The " lifting/lowering" function can be controlled by both the foot pedal as well as the joystick.

The Paver-Clamp Multi6 M is part of the standard equipment. It can be infinitely adjusted to all stone formats, stone layers and stone thicknesses.

Is optionally also available with electric adjustment. All 6 gripper arms are automatically adjusted to the optimum gripping dimension. Find detailed information to our Paver-Clamp Multi6 ME

Height:	1.970 mm
Length:	3.900 mm
Width:	1350 mm
Weight:	1.625 kg
Lifting capacity:	700 kg (1.540 lbs)
Engine:	Electric motor 14 / 23 KW - 48 Volt system with quick-change replaceable lithium-ion batteries.
Battery:	Lithium-ion battery: gross capacity 17.1 kWh - net capacity 14.2 kWh
Battery charger:	Internal charger 3 kW (230 Volt) / External charger 9 kW (400 Volt)
Other:	Oil cooler; hydrostatic drive with single-pedal control, 2-axle turntable steering, rear axle with independent pendulum suspension, hydrostatic parking brake , Steel parts powder-coated, roof, front panel, side panels and bonnet made of GFK-parts RAL 2004 (pure orange) CE - marked
Scope of application:	Paving
Type of product:	Machine
