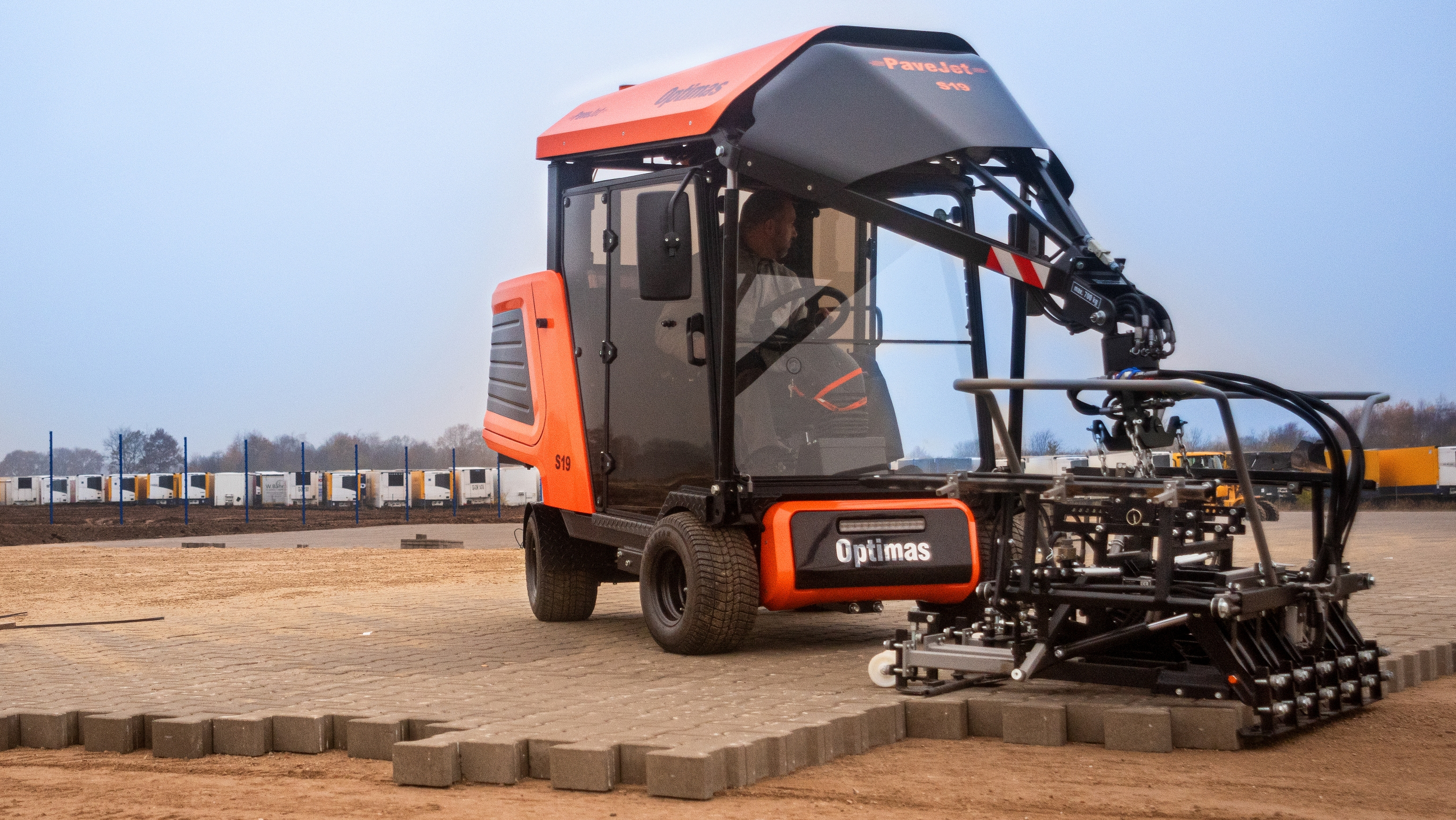

Paver-Clamp Multi6 M (Paver Laying machine)
Art-No. 55141
NEW 2020
A new construction enables more power when pressing and shifting the stones. Paving stones can be placed right up to sidewalls.
Can infinitely be adjusted to all stone formats, stone layers and stone thicknesses in a few simple steps.
Paver-Clamp Multi6 M (Paver Laying machine)
There are so many different concrete pavestones available on the market, that it is no longer possible to keep track.
This raises the question,whether a single paver clamp is sufficient for the countless types of pavers & slabs with their different thicknesses and package sizes? Our clear answer: Yes! Whilst other manufacturers rely on providing up to five or more different models, we have designed one single clamp system to meet all your possible needs. Can infinitely be adjusted to all stone formats, stone layers and stone thicknesses in a few simple steps.
Reduces the effort to a minimum.
…. and with these advantages:
NEW
- A new construction enables more power when pressing and shifting the stones.
- Paving stones can be placed right up to sidewalls.
Multi-talented
- Paver-Clamp can be connected to the Paver Laying machine or to any carrier device
- Stone layers from 0.6 m² (6.5 ft²) to 1.5 m² (16 ft²) can be handled without problems
- Clamps thin stones with 40 mm or thick stones with 240 mm, light stone layers with about 130 kg (280 lbs) or voluminous heavy duty stones with e.g. 550 kg (1.200 lbs) own weight
- Uneven stone layers are picked up by the clamp in exactly the same way as smooth stone layers
- Moves stones from cross bond into running bond by shifting every second row, even with stones who have a protection against disloction
- Herringbone patterns with or without half stones can be handled without problems
- Also clinker or clay bricks, which are stacked on pallets in a read-to-be-laid arrangement, can be clamped in a gentle way.
Material-friendly
- Only 60 bar hydraulic pressure is required due to the intelligent 6-arm clamping technology. Safe clamping and very gentle to the stones.
- This results into a pavement with a perfect joint pattern - this is the distinguishing feature, compared to other grabs on the market.
The success and experience show: Many of the Optimas paving clamps have already laid several 100,000 m² (1.000.000 ft²) of pavers without any problems. Solid workmanship and the advantage of "Made in Germany" production.
Basic equipment:
- Intelligent 6-arm clamping technology
- THydraulic Tap Down device for clean joint pattern
- Alignment / shifting pieces
95% of all concrete paving stones are laid with the standard equipment. The following points should/will be clarified in advance with the potential user to ensure the Paver-Clamp is properly equipped.
u- Stone manufacturer
- Stone formats
- Laying patterns
In three work steps to the perfectly laid pavement:
*technical changes reserved
| Layer sizes: | 0.6 m² (6 ft²) to 1.5 m² (16 ft²) |
| Stone thickness: | 40 mm to 240 mm |
| Stone weight: | up to 550 kg (1.212 lbs) |
| Dead weight: | 185 kg (408 lbs) |
| Hydraulic pressure "for gripping": | 60 bar |
