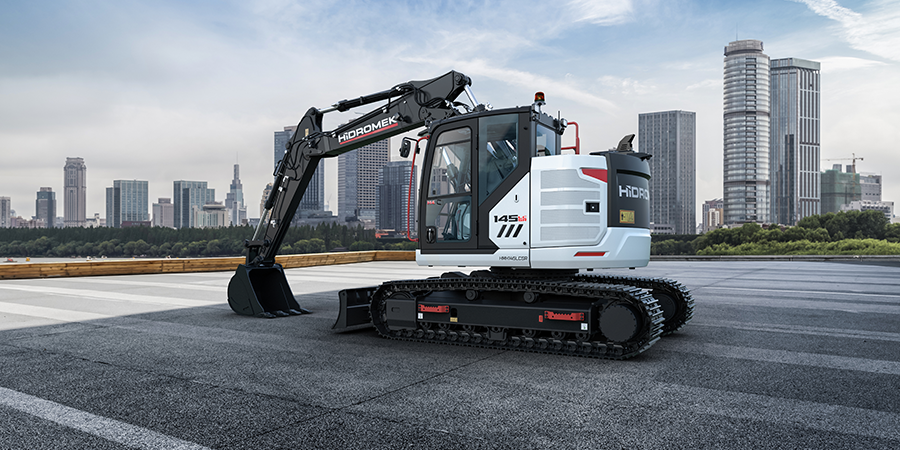

HİDROMEK's new HMK 145 LCSR which belongs to H4 Series produces more work with less fuel; hence, provides maximum efficiency and productivity for its user.
Ensures superior performance in all fields and conditions with its excellent maneuverability and easy usage provided through its high performance engine, quickness and short swing radius.
Provides top level operator safety and comfort with its technological equipment and electronic system.
Due to its compact structure, it offers powerful and precise operation for its users especially in urban areas, narrow spaces and in different working fields such as construction, landscaping, material flooring and leveling.

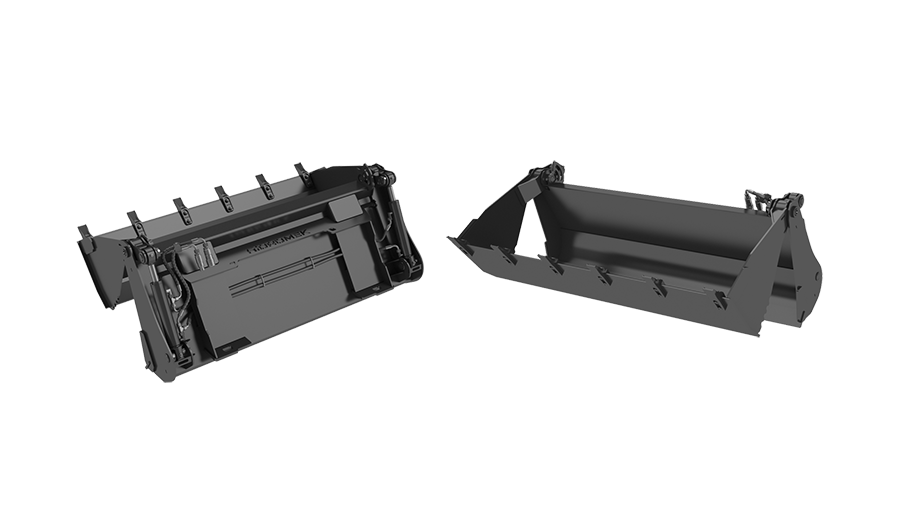

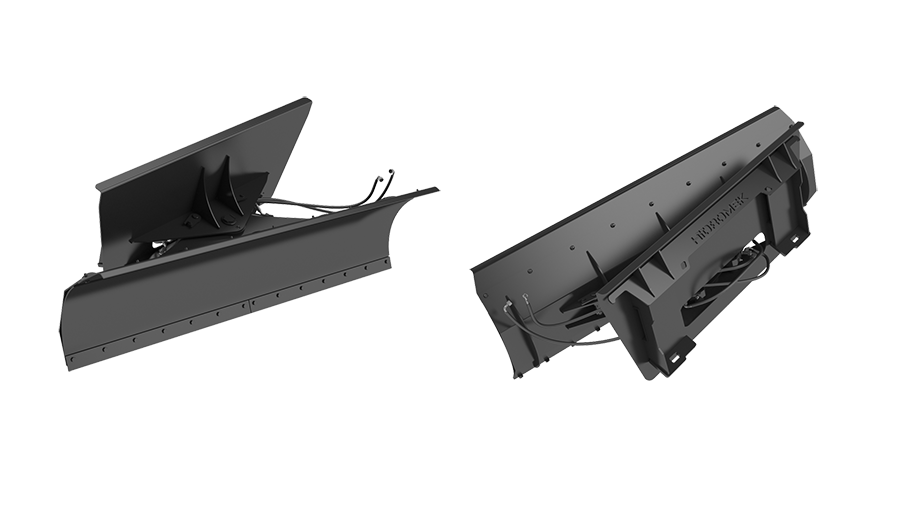

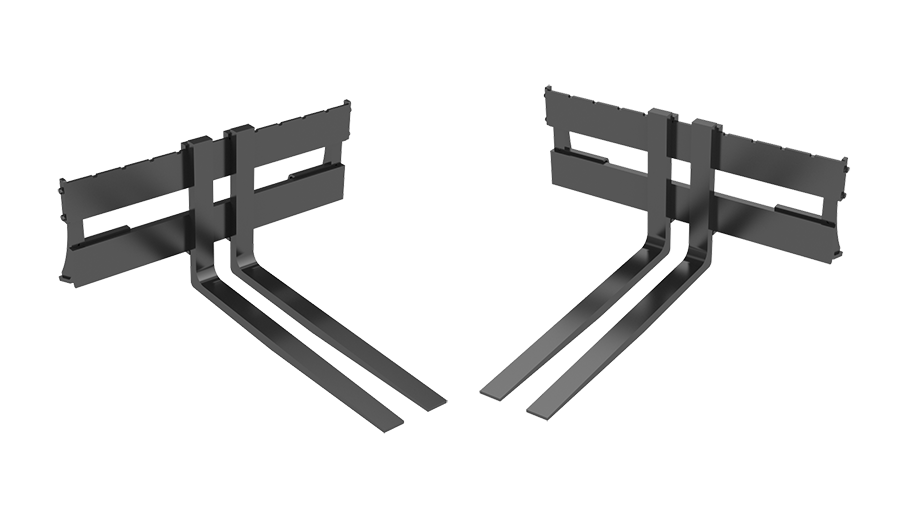

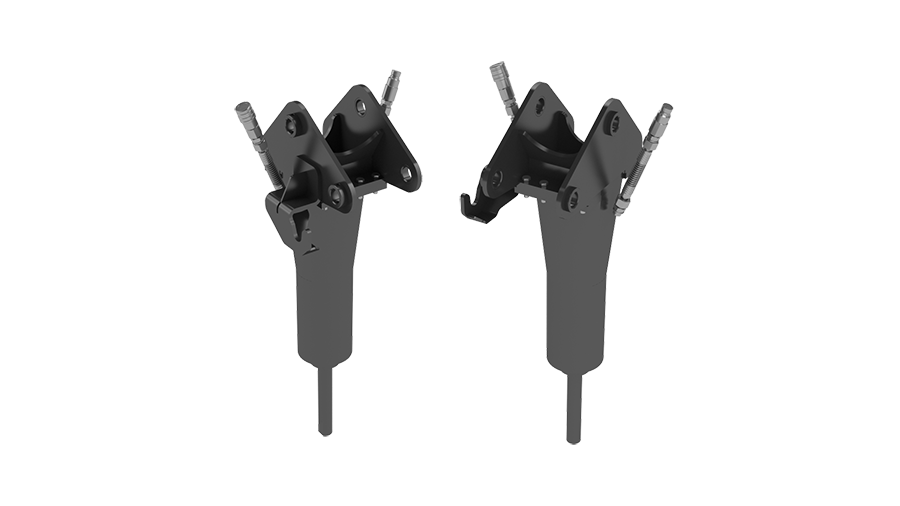

HMK 145 LCSR provides easy operation in urban areas and narrow spaces due to its shorter tail structure and swing radius compared to standard designed machines. Having high lifting capacity due to its short tail design and counterweight, HMK 145 LCSR also offers versatile usage with many different attachment options.
BrandIsuzu
ModelAR-4JJ1X
Number of cylinders4
Bore & Stroke95.4 x 104.9 mm
Displacement2999 cc
Maximum Power102 HP (76,4 kW) @2000 rpm / SAE J1349 (Net)
Maximum Torque367 Nm @1800 rpm (Net)
TypeDouble variable displacement axial piston pumps
Max. Flow2 x 129 L/min
Pilot PumpGear, 20 L/min
Attachment350 kgf/cm²
Power Boost372 kgf/cm²
Travel350 kgf/cm²
Swing300 kgf/cm²
Pilot40 kgf/cm²
TypeAxial piston type integrated with shock absorber valves
Swing Speed11.3 rpm
High Speed5.7 km/h
Low Speed3.4 km/h

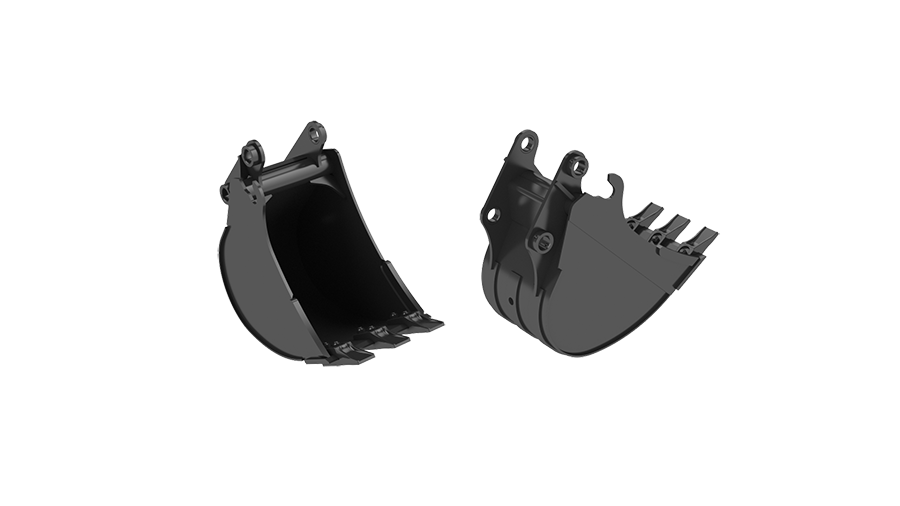

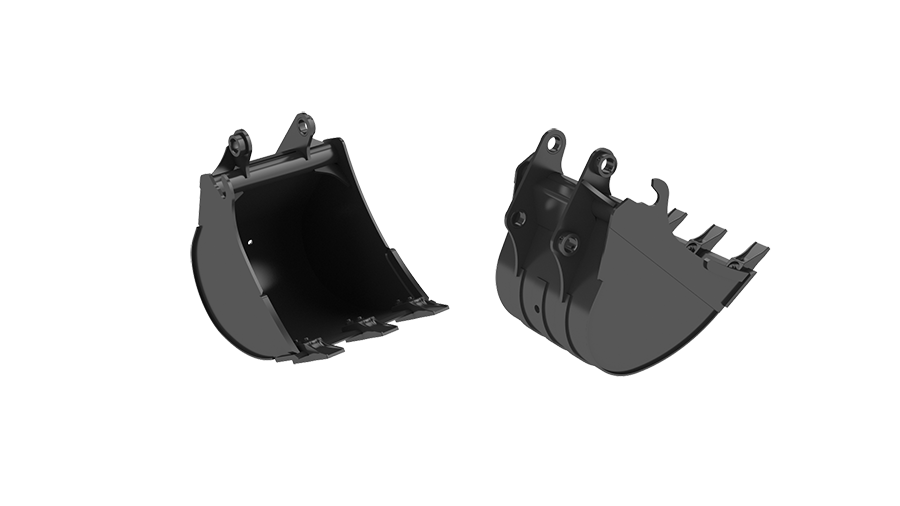

Standard Bucket Capacity0.6 m³
Max. Digging Depth5.36 m
Max. Digging Reach at Ground Level8.04 m
Max. Digging Reach8.20 m
Max. Digging Height9.26 m
Bucket Digging Force (ISO)10.000 kgf
Arm Breakout Force (ISO)7.300 kgf
Boom Dimension4.8 m
Arm Dimensions*2.3 m /2.6 m / 2.9 m
Engine Oil16 L
Radiator20 L
Fuel Tank235 L
Hydrualic Tank115 L
Hydrualic System205 L
Mono Boom16.700 kg
Two Pieces Boom17.150 kg
