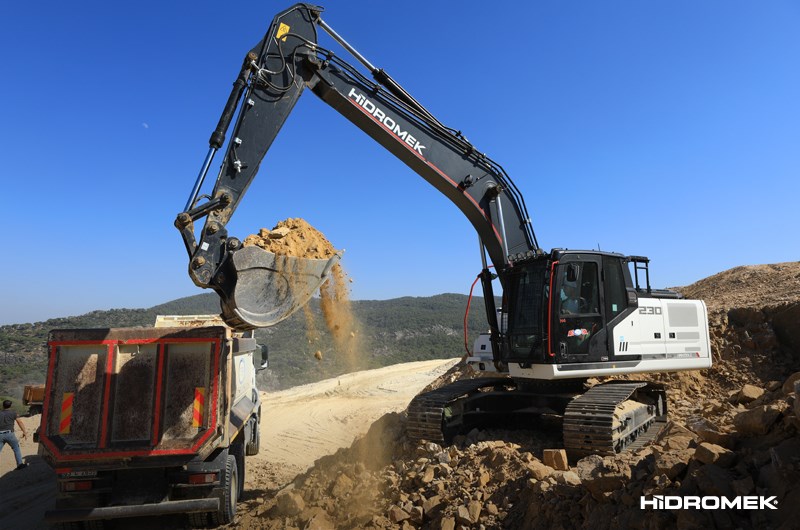

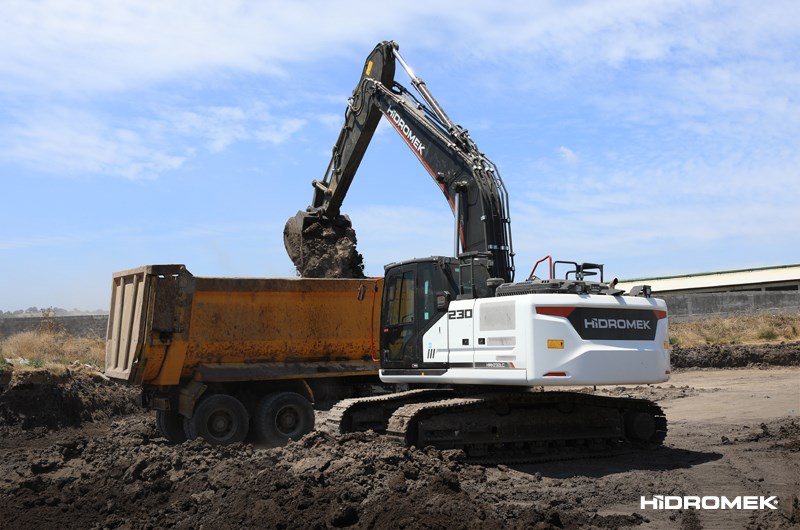

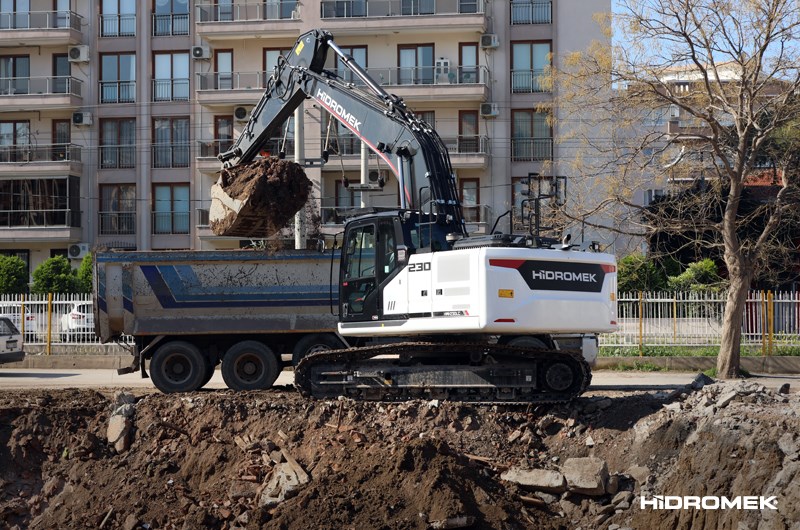

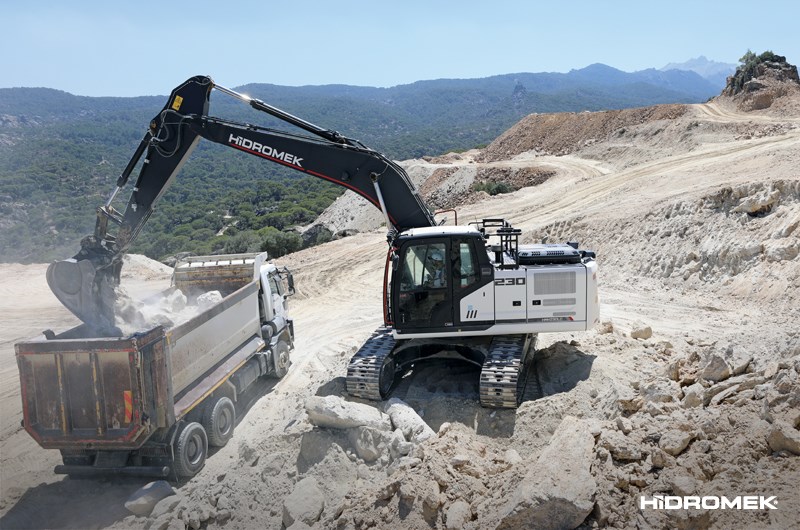

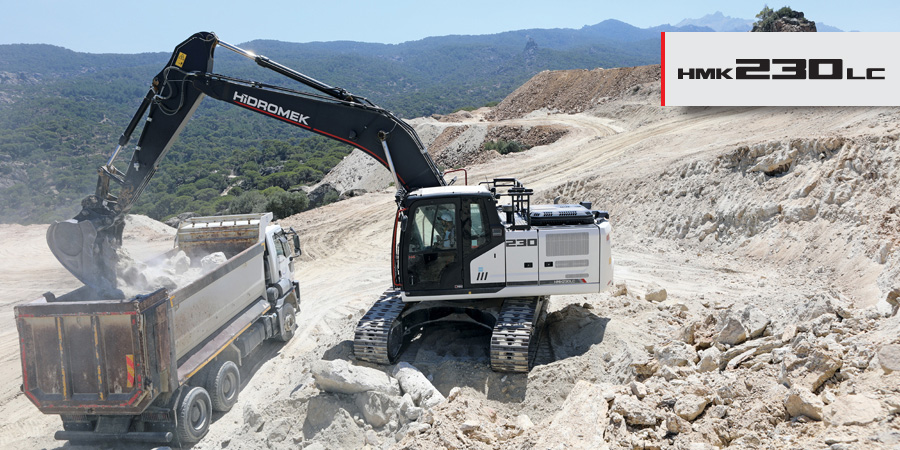

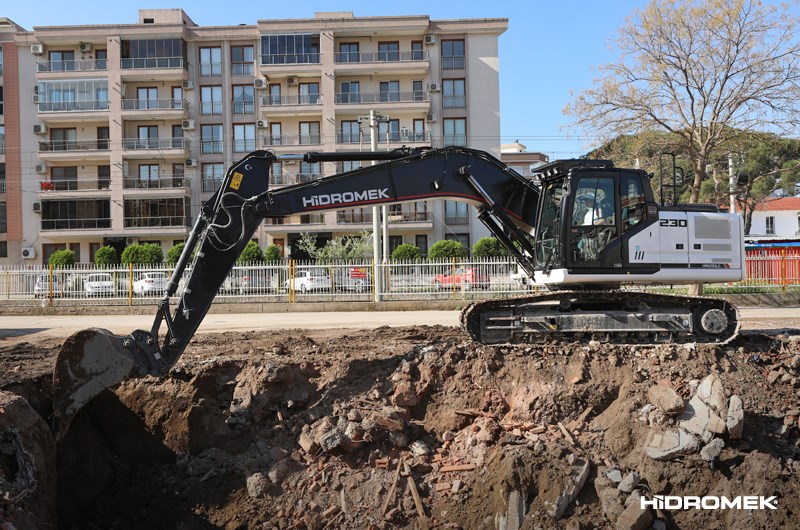

HMK 230 LC
New H4 Series
Innovation coming from experience

Being produced with developed hydraulic system design, HİDROMEK’s new H4 Series excavators offer an outstanding performance by working faster, more productively and more efficiently. H4 Series excavators produce more work with less fuel; hence, they are more profitable for their users than ever.

More durable

Produced to have reinforced heavy duty construction considering maximum performance, long life and smooth operation in severe field conditions, HİDROMEK excavators ensure more durability with the improvements made in the new H4 Series. With their reinforced heavy duty construction produced at HİDROMEK’s modern production facilities and going through sensitive quality-control processes, H4 Series excavators have excellent durability.

Safe working environment
ROPS&FOPS cabin

Having the standards of ROPS (Roll Over Protective Structure) & FOPS (Falling Object Protective Structure), H4 Series excavators provide maximum safety and durability.

Wide vision capacity

Designed with giving special importance to occupational safety, H4 Series ensure excellent vision by minimizing the blind spot on the side and rear cameras. Along with the increase in the number of led headlights, the night vision is significantly improved on H4 Series excavators; in addition, there are also red handles and warning labels providing maximum safety for the operator.

Audio warning systems

H4 Series excavators enable safer working environment with their automatic starting horn, swing warning system and travel warning system.

Engine

BrandIsuzu

ModelISUZU AR-4HK1X

Number of cylinders4

Bore & Stroke115 x 125 mm

Displacement5193 cc

Maximum Power172 HP (128 kW) @2000 rpm

Maximum Torque670 Nm @1600 rpm

Hydrualic System

Pump TypeDouble variable displacement axial piston pumps

Max. Flow 2 x 233 L/min

Pilot Pump 20 L/min

Relief Valves

Attachment350 kgf/cm²

Power Boost370 kgf/cm²

Travel350 kgf/cm²

Swing306 kgf/cm²

Pilot40 kgf/cm²

Swing System

Swing MotorAxial piston type integrated with shock absorber valves

Travel Speeds

Max. Drawbar Pull18.310 kgf

High Speed5.8 km/h

Low Speed3.8 km/h

Digging Performance

Standard Bucket Capacity1.10 m³

Max. Digging Depth6.73 m

Max.Reach at Ground Level9.81 m

Max.dumping height9.97 m

Max.Digging Height9.68 m

Digging Performance

Bucket Digging Force (ISO)15.800 kgf

Arm Breakout Force (ISO)10.900 kgf

Boom Dimension5.7 m

Arm Dimensions2.4 m / *2.92 m

Capacity

Engine Oil23 L

Fuel Tank405 L

Hydrualic Tank152 L

Hydrualic System285 L

Operating Weight

HMK 230 LC - Standard Machine23.650 kg

Exterior Design
