HMK 500 LC HD
Powerful. Strong. Balanced.

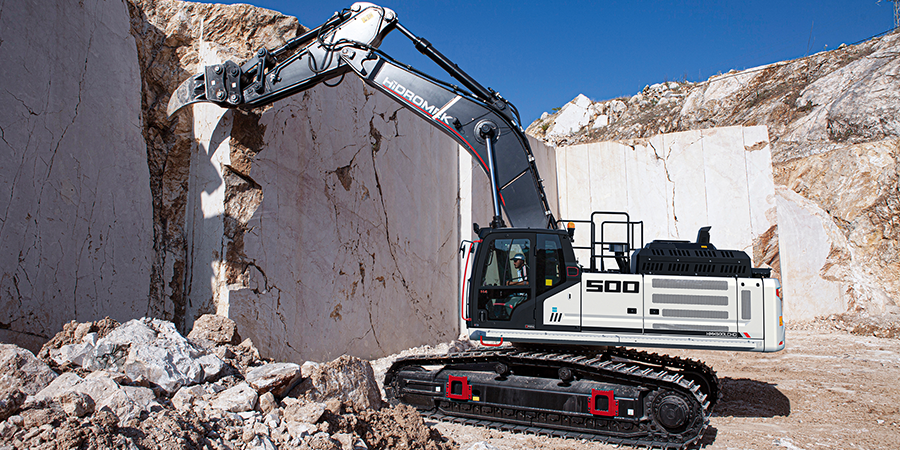

HMK 500 LCHD crawler excavator provides more durability, maximum performance, operator comfort and easy usage due to the strengthened heavy duty type construction in H4 Series and its developed technology. With its robust and balanced structure, it offers smooth and constant working for its user in severe field conditions.

More Sturdier

Owing to the improvements made in arm and boom structure, undercarriage and attachment groups by using more durable materials in H4 Series, HMK 500 LCHD has a more durable structure and offers high performance and long-life usage providing the strength and durability needed in marble quarries, mines and large construction sites.

Engine

BrandIsuzu

ModelISUZU AQ-6UZ1X

Number of cylinders6

Bore & Stroke120 x 145 mm

Displacement9839 cc

Maximum Power362 HP (270 kW) @2000 rpm / SAE J1995 (Gross)

Maximum Torque1650 Nm @1300 rpm (Gross)

Hydrualic System

Pump TypeDouble variable displacement axial piston pumps

Max. Flow 2 x 376 L/min

Pilot Pump 29 L/min

Relief Valves

Attachment330 kgf/cm²

Power Boost355 kgf/cm²

Travel330 kgf/cm²

Swing330 kgf/cm²

Pilot40 kgf/cm²

Swing System

Swing MotorAxial piston type integrated with shock absorber valves

Travel Speeds

Max. Drawbar Pull25.460 kgf

High Speed5.0 km/h

Low Speed2.9 km/h

Digging Performance

Standard Bucket Capacity3.2 m³

Max. Digging Depth6.48 m

Max.Reach at Ground Level10.49 m

Max.dumping height10.77 m

Max.Digging Height10.51 m

Digging Performance

Bucket Digging Force (ISO)28.500 kgf

Arm Breakout Force (ISO)27.600 kgf

Boom Dimension6.30 m

Arm Dimensions*2.60 m-2.90m-3.30m

Capacity

Engine Oil41 L

Radiator65 L

Fuel Tank655 L

Hydrualic Tank370 L

Hydrualic System615 L

Operating Weight

HMK 500 LC HD - Standard Machine51.900 kg
